IQD Frequency Products LFXTAL011301
- Part No.:
- LFXTAL011301
- Manufacturer:
- IQD Frequency Products
- Category:
- Crystals
- Package:
- HC-49/US
- Datasheet:
-
LFXTAL011301.pdf
- Description:
- CRYSTAL 8.0000MHZ 30PF SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LFXTAL011301 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- IQD Frequency Products
- Series:
- HC49/4HSMX
- Package/Case:
- HC-49/US
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- MHz Crystal
- Frequency:
- 8 MHz
- Frequency Stability:
- ±50ppm
- Frequency Tolerance:
- ±30ppm
- Load Capacitance:
- 30pF
- ESR (Equivalent Series Resistance):
- 40 Ohms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -10°C ~ 60°C
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.449" L x 0.150" W (11.40mm x 3.80mm)
- Height - Seated (Max):
- 0.169" (4.30mm)

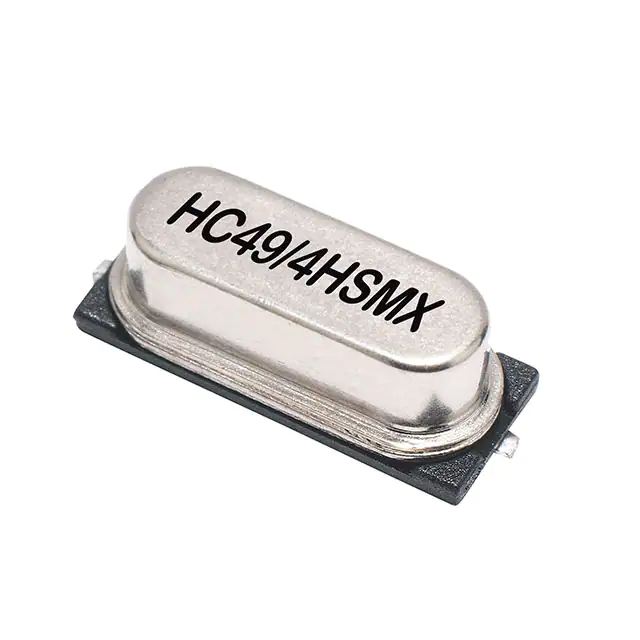

| Image |  |
 |
| Part Number | LFXTAL011301 | LFXTAL011301BULK |
| Manufacturer | IQD Frequency Products | IQD Frequency Products |
| Series | HC49/4HSMX | HC49/4HSMX |
| Package/Case | HC-49/US | HC-49/US |
| Packaging | Tape & Reel (TR) | Bulk |
| Product Status | Active | Discontinued at Digi-Key |
| Type | MHz Crystal | MHz Crystal |
| Frequency | 8 MHz | 8 MHz |
| Frequency Stability | ±50ppm | ±50ppm |
| Frequency Tolerance | ±30ppm | ±30ppm |
| Load Capacitance | 30pF | 30pF |
| ESR (Equivalent Series Resistance) | 40 Ohms | 40 Ohms |
| Operating Mode | Fundamental | Fundamental |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | - | - |
| Size / Dimension | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.449" L x 0.150" W (11.40mm x 3.80mm) |
| Height - Seated (Max) | 0.169" (4.30mm) | 0.169" (4.30mm) |
