LG Display LB070WQ3-TM03
- Part No.:
- LB070WQ3-TM03
- Manufacturer:
- LG Display
- Category:
- TFT-LCD Panel
- Package:
- Description:
- LG Display 7" TN LCM 400×234 400nits CCFL Analog
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
LB070WQ3-TM03 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- LG Display
- Panel Size:
- 7"
- TNVAIPS:
- TN
- Resolution:
- 400×234
- CR:
- 1900/1/16 16:01:00
- Viewing Angle:
- 70/70/50/60
- Colors:
- Full color
- Outline Size:
- 167.5×93.2 (H×V×D)
- Treatment:
- -
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- 400 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 70/70/50/60 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 30 (Typ.)(Tr+Td) ms
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Full color 45% NTSC
- Mass:
- 170g (Typ.)
- Used for:
- Automotive Display
- Touch Screen:
- Refresh Rate:
| Image |  |
 |
|
 |

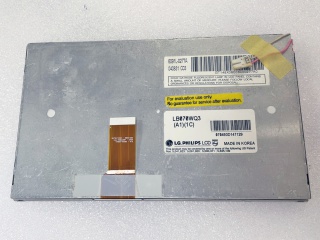

| Part Number | LB070WQ3-A11C | LB070WQ3-TM04 | LB070WQ3-TM05 | LB070WQ3-TM03 |
| Manufacturer | LG Display | LG Display | LG Display | LG Display |
| Panel Size | 7" | 7" | 7" | 7" |
| TNVAIPS | TN | TN | TN | TN |
| Resolution | 400×234 | 400×234 | 400×234 | 400×234 |
| CR | 1900/1/16 16:01:00 | 1900/1/16 16:01:00 | 1900/1/6 6:01:00 | 1900/1/16 16:01:00 |
| Viewing Angle | 70/70/50/60 | 70/70/50/60 | 70/70/50/60 | 70/70/50/60 |
| Colors | Full color | Full color | Full color | Full color |
| Outline Size | 167.5(W)×93.2(H) | 167.5(H)×93.2(V) mm | 167.5(W)×93.2(H)×7.1(D) mm | 167.5×93.2 (H×V×D) |
| Treatment | - | - | Antiglare | - |
| Brightness | 400 (Typ.)(cd/m²) | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (TM) | 400:1 (Typ.) (TM) | 150:1 (Min.) (TM) | 400 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock | 6 o'clock | ||
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | 70/70/50/60 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/50/60 (Typ.)(CR≥10) | 70/70/50/60 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 30 (Typ.)(Tr+Td) ms | 30 (Typ.)(Tr+Td) | 10/20 (Typ.)(Tr/Td) | 30 (Typ.)(Tr+Td) ms |
| Best View on | 6 o'clock | 6 o'clock | ||
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | Full color 45% NTSC | Full color 45% NTSC | Full color 45% NTSC | Full color 45% NTSC |
| Mass | 170g (Typ.) | 170g (Typ.) | 170g (Typ.) | 170g (Typ.) |
| Used for | Automotive Display | Automotive Display | ||
| Touch Screen | Without | |||
| Refresh Rate | - |
