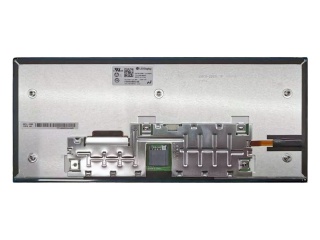

LG Display LA123WF7-SL0B

Name: LA123WF7-SL0B
Brand: LG Display
SKU: LA123WF7-SL0B
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: LA123WF7-SL0B

Manufacturer:: LG Display

Category:: TFT-LCD Panel

Package:

Description:: LG Display 12.3" IPS LCM 1920×720 1000nits WLED LVDS 60pins In-Cell Touch

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

LA123WF7-SL0B Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: LG Display

Panel Size:: 12.3"

TNVAIPS:: IPS

Resolution:: 1920×720

CR:: 1900/2/27 8:01:00

Viewing Angle:: 89/89/89/89

Colors:: 16.7M

Outline Size:: 299.53(W)×123.26(H) ×10.5(D) mm

Treatment:: Hard coating (3H), Reflection 5.5% (Max.)

Brightness:: 1000 cd/m² (Typ.)

Contrast Ratio:: 1400:1 (Typ.) (TM)

View Direction:

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 25 (Max.)(Tr+Td)

Best View on:: Symmetry

Work Mode:: IPS, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 100% sRGB

Mass:: 274/284g (Typ./Max.)

Used for:: Industrial; Rugged Industry; Automotive Display

Touch Screen:: In-Cell Touch, I²C

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

Part Number	LA123WF7-SL05	LA123WF7-SL09	LA123WF7-SL04	LA123WF7-SL0B
Manufacturer	LG Display	LG Display	LG Display	LG Display
Panel Size	12.3"	12.3"	12.3"	12.3"
TNVAIPS	IPS	IPS	IPS	IPS
Resolution	1920×720	1920×720	1920×720	1920×720
CR	1100	1900/2/27 8:01:00	1900/2/10 16:01:00	1900/2/27 8:01:00
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Colors	16.7M	16.7M	16.7M	16.7M
Outline Size	306.1(W)×130.2(H) ×23.5(D) mm	299.53(W)×123.26(H) ×10.5(D) mm	299.53(W)×123.26(H) ×9.34(D) mm	299.53(W)×123.26(H) ×10.5(D) mm
Treatment	Anti Fingerprint + Antiglare, Hard coating (3H), Reflection 2.0% (Max.)	Hard coating (3H), Reflection 5.5% (Max.)	Glare (Haze 0%), Hard coating (3H), Reflection 5.5% (Max.)	Hard coating (3H), Reflection 5.5% (Max.)
Brightness	900 cd/m² (Typ.)	1000 cd/m² (Typ.)	1000 cd/m² (Typ.)	1000 cd/m² (Typ.)
Contrast Ratio	1100:1 (Min.) (TM)	1400:1 (Typ.) (TM)	1000:1 (Min.) (TM)	1400:1 (Typ.) (TM)
View Direction
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	20 (Max.)(Tr+Td)	25 (Max.)(Tr+Td)	25 (Max.)(Tr+Td)	25 (Max.)(Tr+Td)
Best View on	Symmetry	Symmetry	Symmetry	Symmetry
Work Mode	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M 100% sRGB	16.7M 100% sRGB	16.7M 100% sRGB	16.7M 100% sRGB
Mass	510/520g (Typ./Max.)	274/284g (Typ./Max.)	TBD	274/284g (Typ./Max.)
Used for		Industrial; Rugged Industry; Automotive Display		Industrial; Rugged Industry; Automotive Display
Touch Screen	In-Cell Touch, I²C	In-Cell Touch, I²C	In-Cell Touch, I²C	In-Cell Touch, I²C
Refresh Rate	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
