LG Display LA070WV4-SD05
- Part No.:
- LA070WV4-SD05
- Manufacturer:
- LG Display
- Category:
- TFT-LCD Panel
- Package:
- Description:
- LG Display 7" IPS LCM 800×480 WLED TTL 40pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
LA070WV4-SD05 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- LG Display
- Panel Size:
- 7"
- TNVAIPS:
- IPS
- Resolution:
- 800×480
- CR:
- 1900/1/26 6:01:00
- Viewing Angle:
- 70/70/70/70
- Colors:
- 262K
- Outline Size:
- Treatment:
- Brightness:
- -
- Contrast Ratio:
- 630:1 (Min.) (TM)
- View Direction:
- Viewing Angle:
- 70/70/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 15/10 (Typ.)(Tr/Td)
- Best View on:
- Symmetry
- Work Mode:
- IPS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K
- Mass:
- -
- Used for:
- Automotive Display
- Touch Screen:
- -
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |

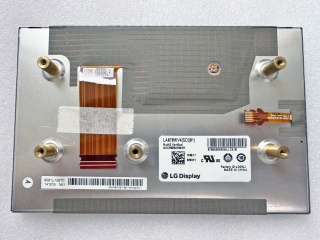

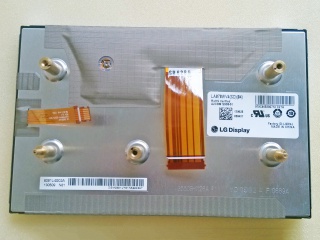

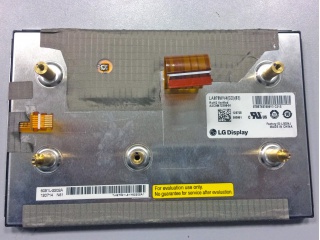

| Part Number | LA070WV4-SD01 | LA070WV4-SD03 | LA070WV4-SD04 | LA070WV4-SD05 |
| Manufacturer | LG Display | LG Display | LG Display | LG Display |
| Panel Size | 7" | 7" | 7" | 7" |
| TNVAIPS | IPS | IPS | IPS | IPS |
| Resolution | 800×480 | 800×480 | 800×480 | 800×480 |
| CR | 1900/2/6 12:01:00 | 1900/1/26 6:01:00 | 1900/1/26 6:01:00 | 1900/1/26 6:01:00 |
| Viewing Angle | 70/70/70/70 | 70/70/70/70 | 70/70/70/70 | 70/70/70/70 |
| Colors | 262K | 262K | 262K | 262K |
| Outline Size | 170(W)×109.6(H) ×16.2(D) mm | 170(W)×109.6(H) ×31.1(D) mm | ||
| Treatment | Antiglare | |||
| Brightness | 470 cd/m² (Typ.) | 470 cd/m² (Min.) | - | - |
| Contrast Ratio | 630:1 (Min.) (TM) | 630:1 (Min.) (TM) | 630:1 (Min.) (TM) | |
| View Direction | ||||
| Viewing Angle | 70/70/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/70/70 (Typ.)(CR≥10) | 70/70/70/70 (Typ.)(CR≥10) | 70/70/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 15/10 (Typ.)(Tr/Td) | 15/10 (Typ.)(Tr/Td) | 15/10 (Typ.)(Tr/Td) | |
| Best View on | Symmetry | Symmetry | Symmetry | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive | |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | 262K 65% NTSC | 262K 65% NTSC | 262K | 262K |
| Mass | 256/261g (Typ./Max.) | 300g (Max.) | - | - |
| Used for | Automotive Display | |||
| Touch Screen | Without | - | - | |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz | 60Hz |
