ILSI IXA16-HF5F12-12.000 MHZ
- Part No.:
- IXA16-HF5F12-12.000 MHZ
- Manufacturer:
- ILSI
- Category:
- Crystals
- Package:
- 4-SMD, No Lead
- Datasheet:
-
IXA16-HF5F12-12.000 MHZ.pdf
- Description:
- CRYSTAL 12.0000MHZ 12PF SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IXA16-HF5F12-12.000 MHZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ILSI
- Series:
- IXA16
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- MHz Crystal
- Frequency:
- 12 MHz
- Frequency Stability:
- ±30ppm
- Frequency Tolerance:
- ±20ppm
- Load Capacitance:
- 12pF
- ESR (Equivalent Series Resistance):
- 100 Ohms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -40°C ~ 85°C
- Ratings:
- AEC-Q200
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):
- 0.031" (0.80mm)

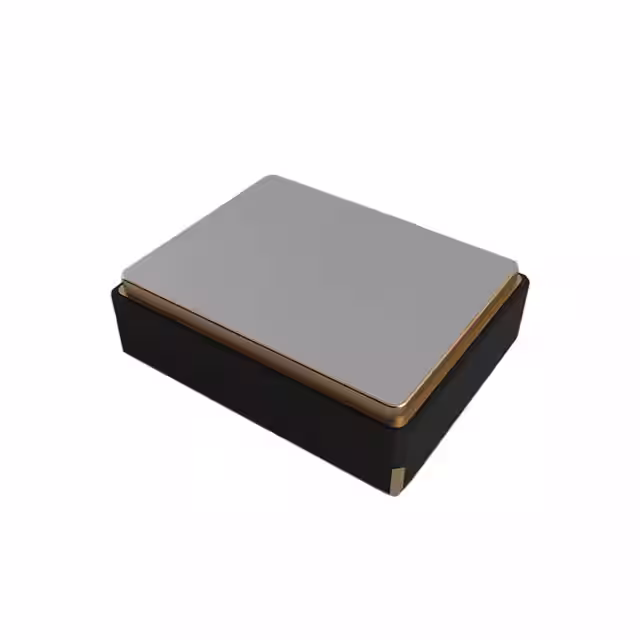

| Image |  |
 |
|
|
|
| Part Number | IXA16-HF5F12-12.000 MHZ | IXA16-HBFF12-25.000MHZ | IXA16-HF5F12-24.000MHZ | IXA16-HF5F12-16.000MHZ | IXA16-HBFF12-24.000MHZ |
| Manufacturer | ILSI | ILSI | ILSI | ILSI | ILSI |
| Series | IXA16 | IXA16 | IXA16 | IXA16 | IXA16 |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 12 MHz | 25 MHz | 24 MHz | 16 MHz | 24 MHz |
| Frequency Stability | ±30ppm | ±50ppm | ±30ppm | ±30ppm | ±50ppm |
| Frequency Tolerance | ±20ppm | ±20ppm | ±20ppm | ±20ppm | ±20ppm |
| Load Capacitance | 12pF | 12pF | 12pF | 12pF | 12pF |
| ESR (Equivalent Series Resistance) | 100 Ohms | 60 Ohms | 60 Ohms | 70 Ohms | 60 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) |
