Signal Transformer IF-2-10
- Part No.:
- IF-2-10
- Manufacturer:
- Signal Transformer
- Category:
- Power Transformers
- Package:
- Datasheet:
-
IF-2-10.pdf
- Description:
- PWR XFMR SEMI-TORO 2VA TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IF-2-10 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Signal Transformer
- Series:
- IF
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Semi-Toroidal
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 5V, Series 10V
- Current - Output (Max):
- Parallel 400mA, Series 200mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 2VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 53.00mm L x 44.00mm W
- Height - Seated (Max):
- 17.60mm
- Voltage - Isolation:
- 4000Vrms
- Weight:
- 0.29 lb (131.54 g)
| Image |  |
 |
|
|
 |

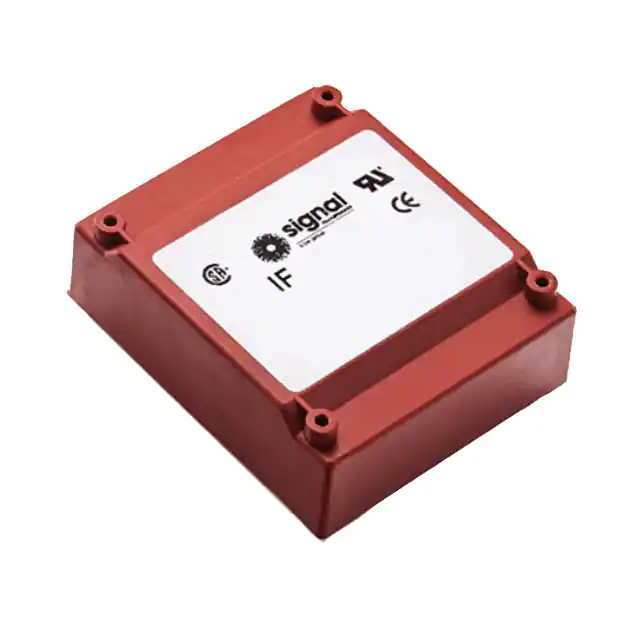

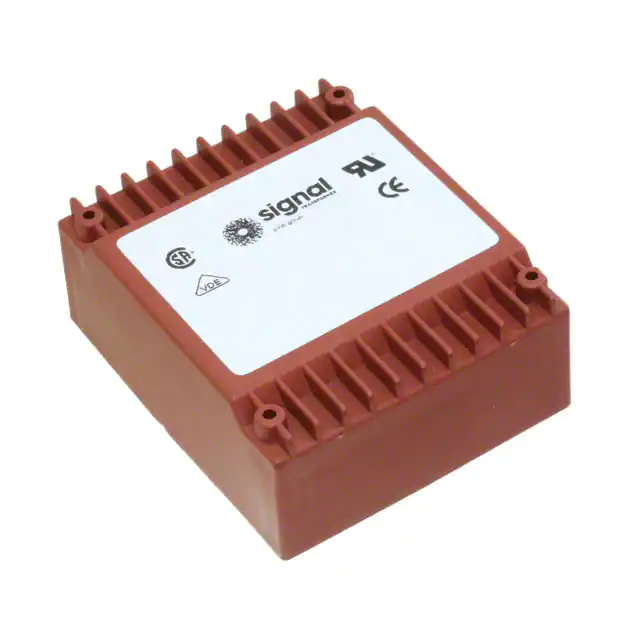

| Part Number | IF-2-10 | IF-18-34 | IF-2-16 | IF-14-30 | IF-24-34 |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Series | IF | IF | IF | IF | IF |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | Semi-Toroidal | Semi-Toroidal | Semi-Toroidal | Semi-Toroidal | Semi-Toroidal |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 5V, Series 10V | Parallel 17V, Series 34V | Parallel 8V, Series 16V | Parallel 15V, Series 30V | Parallel 17V, Series 34V |
| Current - Output (Max) | Parallel 400mA, Series 200mA | Parallel 1.06A, Series 530mA | Parallel 250mA, Series 125mA | Parallel 940mA, Series 470mA | Parallel 1.4A, Series 700mA |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 2VA | 18VA | 2VA | 14VA | 24VA |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 53.00mm L x 44.00mm W | 67.60mm L x 57.00mm W | 53.00mm L x 44.00mm W | 67.60mm L x 57.00mm W | 68.00mm L x 57.50mm W |
| Height - Seated (Max) | 17.60mm | 27.60mm | 17.60mm | 24.30mm | 31.30mm |
| Voltage - Isolation | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms |
| Weight | 0.29 lb (131.54 g) | 0.882 lb (400.07 g) | 0.29 lb (131.54 g) | 0.75 lb (340.19 g) | 1.03 lbs (467.2 g) |
