Elna America HTK-35V391MHC5E-R2
- Part No.:
- HTK-35V391MHC5E-R2
- Manufacturer:
- Elna America
- Category:
- Aluminum - Polymer Capacitors
- Package:
- Datasheet:
-
HTK-35V391MHC5E-R2.pdf
- Description:
- CAP ALUMHYB 390UF 20% 35V SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HTK-35V391MHC5E-R2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Elna America
- Series:
- HTK
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Hybrid
- Capacitance:
- 390 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 35 V
- ESR (Equivalent Series Resistance):
- 18mOhm
- Lifetime @ Temp.:
- 6000 Hrs @ 125°C
- Operating Temperature:
- -55°C ~ 125°C
- Ratings:
- -
- Applications:
- General Purpose
- Features:
- -
- Ripple Current @ Low Frequency:
- 300 mA @ 120 Hz
- Ripple Current @ High Frequency:
- 3 A @ 100 kHz
- Impedance:
- -
- Lead Spacing:
- -
- Size / Dimension:
- 0.394" Dia (10.00mm)
- Height - Seated (Max):
- 0.512" (13.00mm)
- Surface Mount Land Size:
- 0.409" L x 0.409" W (10.40mm x 10.40mm)
- Mounting Type:
- Surface Mount
| Image |  |
|
|
|
 |

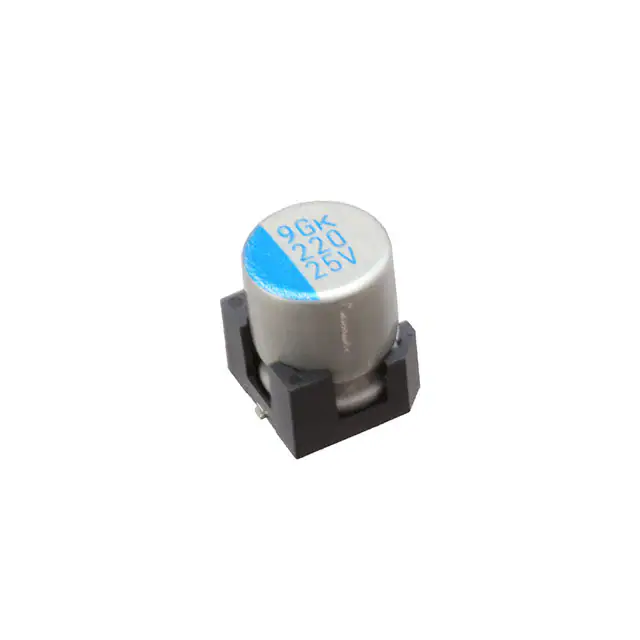

| Part Number | HTK-35V391MHC5E-R2 | HTK-63V100MF61E-R2 | HTK-35V470MF61E-R2 | HTK-25V101MF80E-R2 | HTK-25V221MG10E-R2 |
| Manufacturer | Elna America | Elna America | Elna America | Elna America | Elna America |
| Series | HTK | HTK | HTK | HTK | HTK |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Hybrid | Hybrid | Hybrid | Hybrid | Hybrid |
| Capacitance | 390 µF | 10 µF | 47 µF | 100 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 63 V | 35 V | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | 18mOhm | 120mOhm | 60mOhm | 30mOhm | 27mOhm |
| Lifetime @ Temp. | 6000 Hrs @ 125°C | 6000 Hrs @ 125°C | 6000 Hrs @ 125°C | 6000 Hrs @ 125°C | 6000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz | 70 mA @ 120 Hz | 90 mA @ 120 Hz | 140 mA @ 120 Hz | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz | 700 mA @ 100 kHz | 900 mA @ 100 kHz | 1.4 A @ 100 kHz | 1.6 A @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.315" (8.00mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
