HannStar HSD070ISN1-B01

Name: HSD070ISN1-B01
Brand: HannStar
SKU: HSD070ISN1-B01
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: HSD070ISN1-B01

Manufacturer:: HannStar

Category:: TFT-LCD Panel

Package:

Description:: HannStar 7" TN LCM 800×600 WLED TTL 60pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

HSD070ISN1-B01 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: HannStar

Panel Size:: 7"

TNVAIPS:: TN

Resolution:: 800×600

CR:: 1900/1/25 0:01:00

Viewing Angle:: 60/70/75/75

Colors:: 16.7M

Outline Size:: 156.4(H)×122.25(V) ×3.7(D) mm

Treatment:

Brightness:: -

Contrast Ratio:

View Direction:: 3 o'clock

Viewing Angle:: 60/70/75/75 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:

Work Mode:

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 50% NTSC

Mass:: 120g (Typ.)

Used for:

Touch Screen:

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

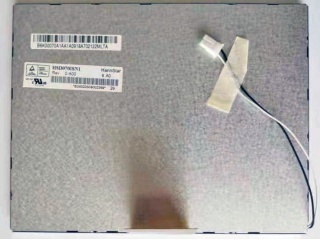

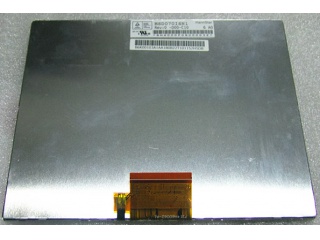

Part Number	HSD070ISN1-A00	HSD070ISN1-B00	HSD070ISN1-D00	HSD070ISN1-B01
Manufacturer	HannStar	HannStar	HannStar	HannStar
Panel Size	7"	7"	7"	7"
TNVAIPS	TN	TN	TN	TN
Resolution	800×600	800×600	800×600	800×600
CR	1900/1/25 0:01:00	1900/1/25 0:01:00	1900/1/25 0:01:00	1900/1/25 0:01:00
Viewing Angle	60/70/75/75	60/70/75/75	60/70/75/75	60/70/75/75
Colors	16.7M	16.7M	16.7M	16.7M
Outline Size	154(H)×119.2(V) ×5.4(D) mm	156.4(W)×122.25(H) ×3.7(D) mm	156.4 × 122.25 × 4.4 (H×V×D)	156.4(H)×122.25(V) ×3.7(D) mm
Treatment	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)	200 cd/m² (Typ.)	350 cd/m² (Typ.)	-
Contrast Ratio	600:1 (Typ.) (TM)	600:1 (Typ.) (TM)	600 : 1 (Typ.) (TM)
View Direction	3 o'clock			3 o'clock
Viewing Angle	60/70/75/75 (Typ.)(CR≥10) (Left / Right / Up / Down)	60/70/75/75 (Typ.)(CR≥10)	60/70/75/75 (Typ.)(CR≥10) (Left / Right / Up / Down)	60/70/75/75 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	2.4/5.6 (Typ.)(Tr/Td)	2.4/5.6 (Typ.)(Tr/Td)	2.4/5.6 (Typ.)(Tr/Td) ms
Best View on		3 o'clock	3 o'clock
Work Mode	TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M	16.7M 50% NTSC	16.7M 50% NTSC	16.7M 50% NTSC
Mass	160g	120g (Typ.)	120g (Typ.)	120g (Typ.)
Used for	Digital Photo Frame		Digital Photo Frame
Touch Screen	Without	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
