BOE HR215WU1-120

Name: HR215WU1-120
Brand: BOE
SKU: HR215WU1-120
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: HR215WU1-120

Manufacturer:: BOE

Category:: TFT-LCD Panel

Package:

Description:: BOE 21.5" IPS LCM 1920×1080 250nits WLED LVDS 30pins 75Hz

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

HR215WU1-120 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: BOE

Panel Size:: 21.5"

TNVAIPS:: IPS

Resolution:: 1920×1080

CR:: 1900/2/10 16:01:00

Viewing Angle:: 89/89/89/89

Colors:: 16.7M

Outline Size:: 495.6(H)×292.2(V) ×11.3(D) mm

Treatment:

Brightness:: 250 cd/m² (Typ.)

Contrast Ratio:

View Direction:: Symmetry

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:

Work Mode:

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 72% NTSC

Mass:: 1.79Kgs (Typ.)

Used for:

Touch Screen:

Refresh Rate:: 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

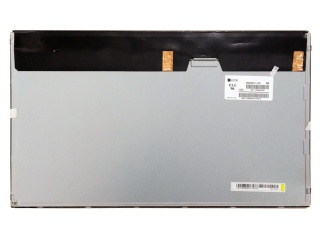

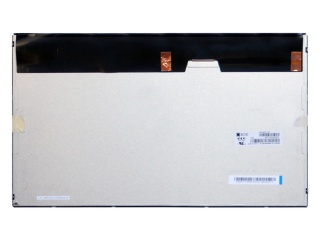

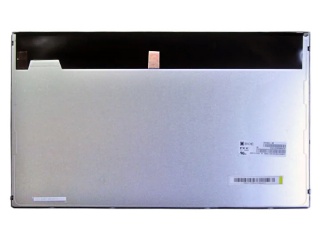

Part Number	HR215WU1-120	HR215WU1-210	HR215WU1-100	HR215WU1-200
Manufacturer	BOE	BOE	BOE	BOE
Panel Size	21.5"	21.5"	21.5"	21.5"
TNVAIPS	IPS	IPS	IPS	IPS
Resolution	1920×1080	1920×1080	1920×1080	1920×1080
CR	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Colors	16.7M	16.7M	16.7M	16.7M
Outline Size	495.6(H)×292.2(V) ×11.3(D) mm	495.6 × 292.2 × 11.3 (H×V×D)	495.6(W)×292.2(H)×10.7(D) mm	495.6(H)×292.2(V)×11.2(D) mm
Treatment		Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)	250 cd/m² (Typ.)	250 cd/m² (Typ.)	250 cd/m² (Typ.)
Contrast Ratio		1000 : 1 (Typ.) (TM)	1000:1 (Typ.) (TM)	1000:1 (Typ.) (TM)
View Direction	Symmetry		Symmetry	Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time		14 (Typ.)(Tr+Td) ms	14 (Typ.)(Tr+Td)	14 (Typ.)(Tr+Td)
Best View on		Symmetry
Work Mode		FFS, Normally Black, Transmissive	FFS, Normally Black, Transmissive	ADS, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M 72% NTSC	16.7M 100% sRGB	16.7M 99% sRGB	16.7M 99% sRGB
Mass	1.79Kgs (Typ.)	1.93Kgs (Typ.)	1.90Kgs (Typ.)	2.15Kgs (Typ.)
Used for		Desktop Monitor	Desktop Monitor	Desktop Monitor
Touch Screen		Without	Without	Without
Refresh Rate	75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	75Hz	75Hz	75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
