BOE HM150X01-N01

Name: HM150X01-N01
Brand: BOE
SKU: HM150X01-N01
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: HM150X01-N01

Manufacturer:: BOE

Category:: TFT-LCD Panel

Package:

Description:: BOE 15" TN LCM 1024×768 350nits WLED LVDS 20pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

HM150X01-N01 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: BOE

Panel Size:: 15"

TNVAIPS:: TN

Resolution:: 1024×768

CR:: 1900/1/29 4:01:00

Viewing Angle:: 80/80/80/80

Colors:: 262K/16.2M

Outline Size:: 326.5(H)×253.5(V) ×10(D) mm

Treatment:

Brightness:: 350 cd/m² (Typ.)

Contrast Ratio:

View Direction:: -

Viewing Angle:: 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:

Work Mode:

Glass Thickness:

Transmissivity:

Color Depth:: 262K/16.2M 60% NTSC

Mass:: 850g (Typ.)

Used for:

Touch Screen:

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

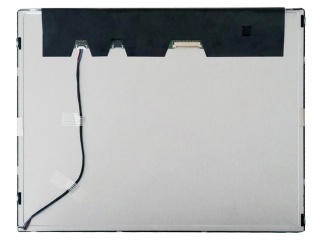

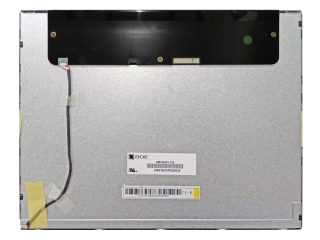

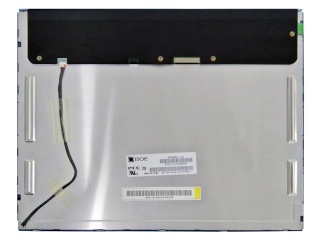

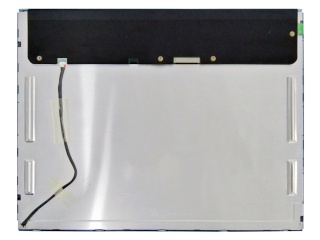

Part Number	HM150X01-N01	HM150X01-102	HM150X01-101	HM150X01-N01-1QP1	HM150X01-200
Manufacturer	BOE	BOE	BOE	BOE	BOE
Panel Size	15"	15"	15"	15"	15"
TNVAIPS	TN	TN	TN	TN	TN
Resolution	1024×768	1024×768	1024×768	1024×768	1024×768
CR	1900/1/29 4:01:00	1900/1/29 4:01:00	1900/1/29 4:01:00	1900/1/29 4:01:00	1900/1/29 4:01:00
Viewing Angle	80/80/80/80	80/80/80/80	80/80/70/60	80/80/80/80	80/80/70/60
Colors	262K/16.2M	262K/16.2M	16.2M	16.7M	16.2M
Outline Size	326.5(H)×253.5(V) ×10(D) mm	326.5 × 253.5 × 11.9 (H×V×D)	326.5(W)×253.5(H)×11.9(D) mm	326.5(W)×253.5(H)×10(D) mm	326.5×253.5×11.9 (H×V×D)
Treatment		Antiglare (Haze 25%), Hard coating (3H)	Antiglare (Haze 25%), Hard coating (3H)	Antiglare (Haze 25%), Hard coating (3H)	Antiglare (Haze 25%), Hard coating (3H)
Brightness	350 cd/m² (Typ.)	350 cd/m² (Typ.)	300 cd/m² (Typ.)	350 cd/m² (Typ.)	400 cd/m² (Typ.)
Contrast Ratio		700 : 1 (Typ.) (TM)	700:1 (Typ.) (TM)	700:1 (Typ.) (TM)	700 : 1 (Typ.) (TM)
View Direction	-		-	-
Viewing Angle	80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	80/80/70/60 (Typ.)(CR≥10) (Left / Right / Up / Down)	80/80/80/80 (Typ.)(CR≥10)	80/80/70/60 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time		8 (Typ.)(Tr+Td) ms	8 (Typ.)(Tr+Td)	8 (Typ.)(Tr+Td)	20 (Typ.)(Tr+Td) ms
Best View on		-			-
Work Mode		TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K/16.2M 60% NTSC	262K/16.2M 60% NTSC	16.2M 60% NTSC	16.7M 58% NTSC	16.2M 62% NTSC
Mass	850g (Typ.)	1.04Kgs (Typ.)	1.20Kgs (Max.)	850±30g	1.00Kgs
Used for		Industrial; Healthcare	Industrial		Industrial
Touch Screen		Without	Without	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
