BOE GV101WXM-N85
- Part No.:
- GV101WXM-N85
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 10.1" IPS LCM 1280×800 430nits WLED LVDS 40pins BOE0950
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
GV101WXM-N85 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 10.1"
- TNVAIPS:
- IPS
- Resolution:
- 1280×800
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 85/85/85/85
- Colors:
- 16.7M
- Outline Size:
- 228.2(W)×148.85(H) ×4.9(D) mm
- Treatment:
- Antiglare (Haze 25%)
- Brightness:
- 430 cd/m² (Typ.)
- Contrast Ratio:
- 800:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 30 (Typ.)(Tr+Td)
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 48% NTSC
- Mass:
- 250g (Max.)
- Used for:
- Pad & Tablet
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

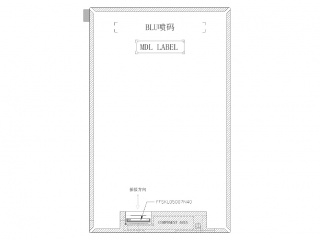

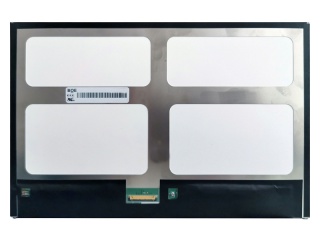

| Part Number | GV101WXM-N80 | GV101WXM-N85 | GV101WXM-N81 | GV101WXM-N81-D850 | GV101WXM-N10 |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 10.1" | 10.1" | 10.1" | 10.1" | 10.1" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1280×800 | 1280×800 | 1280×800 | 1280×800 | 800×1280 |
| CR | 1900/2/23 4:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 80/80/80/80 | 80/80/80/80 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 228.2(H)×148.85(V) ×4.9(D) mm | 228.2(W)×148.85(H) ×4.9(D) mm | 228.3(H)×149.05(V)×2.6(D) mm | 228.3(W)×149.05(H) ×2.6(D) mm | 143(W)×228.6(H) ×5.2(D) mm |
| Treatment | Hard coating (3H) | Antiglare (Haze 25%) | Glare (Haze 0%), Hard coating | Glare (Haze 0%), Hard coating | Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) | 430 cd/m² (Typ.) | 300 cd/m² (Typ.) | 250 cd/m² (Typ.) | 280 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | Symmetry | |||
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/80 (Typ.)(CR≥10) |
| Response Time | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) |
| Best View on | Symmetry | Symmetry | Symmetry | ||
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 45% NTSC | 16.7M 48% NTSC | 16.7M 48% NTSC | 16.7M 50% NTSC | 16.7M 50% NTSC |
| Mass | 150g (Max.) | 250g (Max.) | 155g (Max.) | 155g (Max.) | 150g (Typ.) |
| Used for | Industrial | Pad & Tablet | Pad & Tablet; Industrial | Industrial | |
| Touch Screen | Without | Without | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
