BOE GV101WUM-N40
- Part No.:
- GV101WUM-N40
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 10.1" IPS Assembly 1920×1200 1000nits WLED eDP 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
GV101WUM-N40 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 10.1"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1200
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 80/80/80/80
- Colors:
- 16.2M
- Outline Size:
- 228.2(H)×149(V) mm
- Treatment:
- Hard coating (3H)
- Brightness:
- 1000 cd/m² (Typ.)
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 30 (Typ.)(Tr+Td)
- Best View on:
- Work Mode:
- HADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.2M 50% NTSC
- Mass:
- 125±10g
- Used for:
- Industrial; Outdoor High Brightness
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |

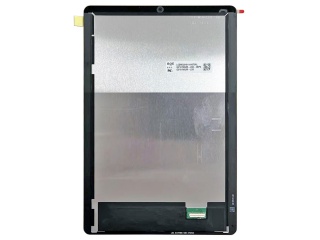

| Part Number | GV101WUM-N40 | GV101WUM-LS0 |
| Manufacturer | BOE | BOE |
| Panel Size | 10.1" | 10.1" |
| TNVAIPS | IPS | IPS |
| Resolution | 1920×1200 | 1200×1920 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 80/80/80/80 | 80/80/80/80 |
| Colors | 16.2M | 16.7M |
| Outline Size | 228.2(H)×149(V) mm | 159.9(W)×239(H) mm |
| Treatment | Hard coating (3H) | Hard coating |
| Brightness | 1000 cd/m² (Typ.) | 290 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/80 (Min.)(CR≥10) |
| Response Time | 30 (Typ.)(Tr+Td) | 25 (Typ.)(Tr+Td) |
| Best View on | Symmetry | |
| Work Mode | HADS, Normally Black, Transmissive | - |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 16.2M 50% NTSC | 16.7M 100% sRGB |
| Mass | 125±10g | 210g (Typ.) |
| Used for | Industrial; Outdoor High Brightness | |
| Touch Screen | Without | In-Cell Touch, I²C |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
