AUO G270ZAN01.3
- Part No.:
- G270ZAN01.3
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 27" IPS LCM 3840×2160 350nits WLED eDP 51pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G270ZAN01.3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 27"
- TNVAIPS:
- IPS
- Resolution:
- 3840×2160
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 630(W)×368.2(H)×19.8(D) mm
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 350 cd/m² (Typ.)
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10)
- Response Time:
- 16/25 (Typ./Max.)(Tr+Td)
- Best View on:
- Work Mode:
- AHVA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 99% Adobe RGB
- Mass:
- 3.30Kgs (Typ.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz

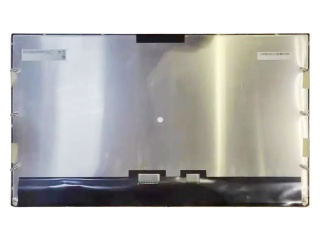

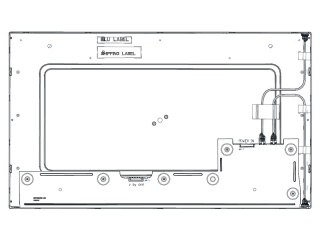

| Image |  |
 |
 |
 |
 |
| Part Number | G270ZAN01.1 | G270ZAN01.3 | G270ZAN01.5 | G270ZAN01.0 | G270ZAN01.2 |
| Manufacturer | AUO | AUO | AUO | AUO | AUO |
| Panel Size | 27" | 27" | 27" | 27" | 27" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 3840×2160 | 3840×2160 | 3840×2160 | 3840×2160 | 3840×2160 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 1.07B | 16.7M | 1.07B | 1.07B | 16.7M |
| Outline Size | 630(W)×368.2(H)×23.4(D) mm | 630(W)×368.2(H)×19.8(D) mm | 613.6(W)×356.85(H)×14.95(D) mm | 630(W)×368.2(H) ×23.4(D) mm | 630(W)×368(H)×22.5(D) mm |
| Treatment | Antiglare | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare | Antiglare |
| Brightness | 800 cd/m² (Typ.) | 350 cd/m² (Typ.) | 500 cd/m² (Typ.) | 800 cd/m² (Typ.) | 850 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | Symmetry | Symmetry | Symmetry | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 16/25 (Typ./Max.)(Tr+Td) | 16/25 (Typ./Max.)(Tr+Td) | 16 (Typ.)(Tr+Td) | 16/25 (Typ./Max.)(Tr+Td) | 16 (Typ.)(Tr+Td) |
| Best View on | Symmetry | ||||
| Work Mode | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 1.07B 94% NTSC | 16.7M 99% Adobe RGB | 1.07B 93% DCI-P3 | 1.07B 94% NTSC | 16.7M 92% DCI-P3 |
| Mass | 3.40Kgs (Typ.) | 3.30Kgs (Typ.) | 2.70Kgs (Typ.) | 3.40Kgs (Typ.) | 3.40Kgs (Typ.) |
| Used for | Industrial; Medical Imaging; Outdoor High Brightness | Industrial; Medical Imaging; Outdoor High Brightness | Industrial; Medical Imaging; Outdoor High Brightness | ||
| Touch Screen | Without | Without | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz | 60Hz | 60Hz | 144Hz |
