AUO G215HAN01.0

Name: G215HAN01.0
Brand: AUO
SKU: G215HAN01.0
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G215HAN01.0

Manufacturer:: AUO

Category:: TFT-LCD Panel

Package:

Description:: AUO 21.5" IPS LCM 1920×1080 400nits WLED LVDS 30pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

G215HAN01.0 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: AUO

Panel Size:: 21.5"

TNVAIPS:: IPS

Resolution:: 1920×1080

CR:: 1900/2/10 16:01:00

Viewing Angle:: 89/89/89/89

Colors:: 16.7M

Outline Size:: 497.6 × 292.2 × 18.2 (H×V×D)

Treatment:: Antiglare, Hard coating (3H)

Brightness:: 400 cd/m² (Typ.)

Contrast Ratio:: 1000 : 1 (Typ.) (TM)

View Direction:

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 12/10 (Typ.)(Tr/Td) ms

Best View on:: Symmetry

Work Mode:: AHVA, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 72% NTSC

Mass:: 2.10Kgs (Typ.)

Used for:: Industrial; Medical Imaging

Touch Screen:: Without

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

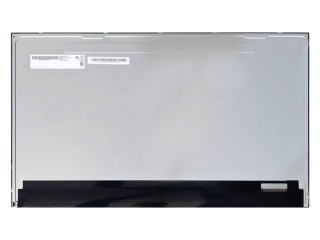

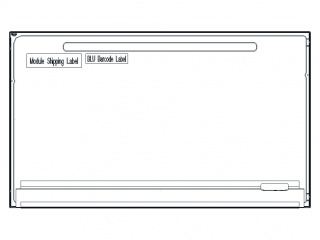

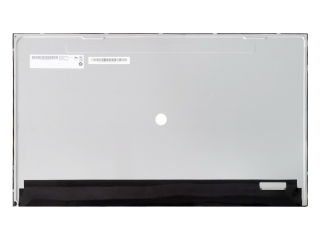

Part Number	G215HAN01.3	G215HAN01.0	G215HAN01.2	G215HAN01.501	G215HAN01.201
Manufacturer	AUO	AUO	AUO	AUO	AUO
Panel Size	21.5"	21.5"	21.5"	21.5"	21.5"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
CR	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Colors	16.7M	16.7M	16.7M	16.7M	16.7M
Outline Size	497.6(W)×292.2(H) ×11(D) mm	497.6 × 292.2 × 18.2 (H×V×D)	497.6(W)×292.2(H) ×11(D) mm	497.6(W)×292.2(H) ×11.1(D) mm	497.6(W)×292.2(H) ×11(D) mm
Treatment	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)	400 cd/m² (Typ.)	350 cd/m² (Typ.)	500 cd/m² (Typ.)	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)	1000 : 1 (Typ.) (TM)	1000:1 (Typ.) (TM)	1000:1 (Typ.) (TM)
View Direction
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	12/10 (Typ.)(Tr/Td)	12/10 (Typ.)(Tr/Td) ms	12/10 (Typ.)(Tr/Td)	12/10 (Typ.)(Tr/Td)
Best View on	Symmetry	Symmetry	Symmetry	Symmetry	Symmetry
Work Mode	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 99% sRGB
Mass	1.74Kgs (Typ.)	2.10Kgs (Typ.)	1.74Kgs (Typ.)	1.74Kgs (Typ.)	1.74Kgs (Typ.)
Used for	Industrial; Medical Imaging	Industrial; Medical Imaging		Industrial; Medical Imaging
Touch Screen	Without	Without	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
