AUO G190ETN01.0

Name: G190ETN01.0
Brand: AUO
SKU: G190ETN01.0
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G190ETN01.0

Manufacturer:: AUO

Category:: TFT-LCD Panel

Package:

Description:: AUO 19" TN LCM 1280×1024 350nits WLED LVDS 30pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

G190ETN01.0 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: AUO

Panel Size:: 19"

TNVAIPS:: TN

Resolution:: 1280×1024

CR:: 1900/2/10 16:01:00

Viewing Angle:: 85/85/80/80

Colors:: 16.7M

Outline Size:: 396(H)×324(V)×11.7(D) mm

Treatment:: Antiglare, Hard coating (3H)

Brightness:: 350 cd/m² (Typ.)

Contrast Ratio:: 1000:1 (Typ.) (TM)

View Direction:: -

Viewing Angle:: 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 3.6/1.4 (Typ.)(Tr/Td)

Best View on:

Work Mode:: TN, Normally White, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 72% NTSC

Mass:: 1.80Kgs (Typ.)

Used for:: Industrial

Touch Screen:: Without

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

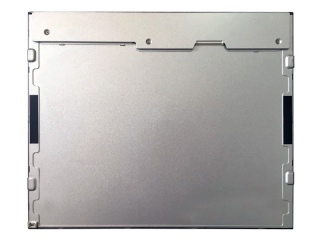

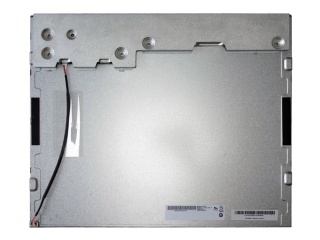

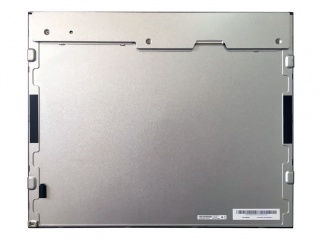

Part Number	G190ETN01.4	G190ETN01.0	G190ETN01.2	G190ETN01.1	G190ETN01.8
Manufacturer	AUO	AUO	AUO	AUO	AUO
Panel Size	19"	19"	19"	19"	19"
TNVAIPS	TN	TN	TN	TN	TN
Resolution	1280×1024	1280×1024	1280×1024	1280×1024	1280×1024
CR	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00
Viewing Angle	85/85/80/80	85/85/80/80	85/85/80/80	85/85/80/80	85/85/80/80
Colors	16.7M	16.7M	16.7M	16.7M	16.7M
Outline Size	396 × 324 × 13.38 (H×V×D)	396(H)×324(V)×11.7(D) mm	396(W)×324(H)×15.68(D)	396(W)×324(H) ×11.7(D) mm	396(H)×324(V)×11.7(D) mm
Treatment	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)
Brightness	450 cd/m² (Typ.)	350 cd/m² (Typ.)	350 (Typ.)(cd/m²)	380 cd/m² (Typ.)	800 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)	1000:1 (Typ.) (TM)	1000 : 1 (Typ.) (TM)	1000:1 (Typ.) (TM)	1000:1 (Typ.) (TM)
View Direction		-			-
Viewing Angle	85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/80/80 (Typ.)(CR≥10)	85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	7/3 (Typ.)(Tr/Td) ms	3.6/1.4 (Typ.)(Tr/Td)	3/7 (Typ.)(Tr/Td) ms	3/7 (Typ.)(Tr/Td)	7/3 (Typ.)(Tr/Td)
Best View on	-		-	-
Work Mode	TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M 90% NTSC	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 70% NTSC
Mass	1.80Kgs (Typ.)	1.80Kgs (Typ.)	1.80Kgs (Typ.)	1.80Kgs	1.80Kgs (Typ.)
Used for	Industrial	Industrial		Gaming	Industrial; Outdoor High Brightness
Touch Screen	Without	Without	Without	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
