AUO G185HAN01.0

Name: G185HAN01.0
Brand: AUO
SKU: G185HAN01.0
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G185HAN01.0

Manufacturer:: AUO

Category:: TFT-LCD Panel

Package:

Description:: AUO 18.5" IPS LCM 1920×1080 350nits WLED LVDS 30pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

G185HAN01.0 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: AUO

Panel Size:: 18.5"

TNVAIPS:: IPS

Resolution:: 1920×1080

CR:: 1900/2/10 16:01:00

Viewing Angle:: 89/89/89/89

Colors:: 16.7M

Outline Size:: 430.4×254.6×12.5 (H×V×D)

Treatment:: Antiglare, Hard coating (3H)

Brightness:: 350 cd/m² (Typ.)

Contrast Ratio:: 1000 : 1 (Typ.) (TM)

View Direction:

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 10/10 (Typ.)(Tr/Td) ms

Best View on:: Symmetry

Work Mode:: AHVA, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 99% sRGB

Mass:: 1.20Kgs (Typ.)

Used for:: Industrial; Medical Imaging

Touch Screen:: Without

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

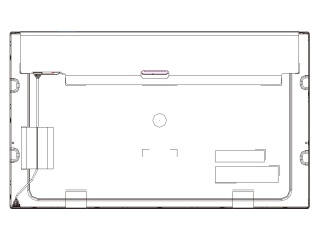

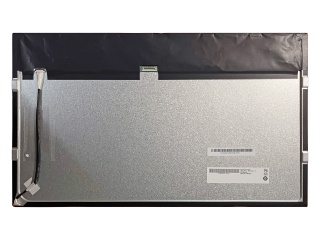

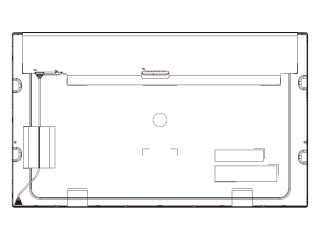

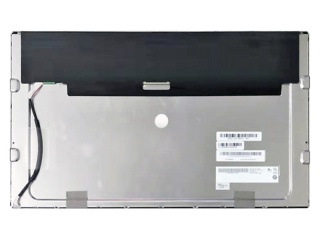

Part Number	G185HAN01.0	G185HAN01.104	G185HAN01.100	G185HAN01.004	G185HAN01.3
Manufacturer	AUO	AUO	AUO	AUO	AUO
Panel Size	18.5"	18.5"	18.5"	18.5"	18.5"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
CR	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Colors	16.7M	16.7M	16.7M	16.7M	16.7M
Outline Size	430.4×254.6×12.5 (H×V×D)	430.4 × 254.6 × 12.5 (H×V×D)	430.4(H)×254.6(V)×12.5(D) mm	430.4(W)×254.6(H) ×12.5(D) mm	429.3(H)×253.06(V) ×11.83(D) mm
Treatment	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)
Brightness	350 cd/m² (Typ.)	500 cd/m² (Typ.)	500 cd/m² (Typ.)	350 cd/m² (Typ.)	500 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)	1000 : 1 (Typ.) (TM)	1000:1 (Typ.) (TM)	1000:1 (Typ.) (TM)	1000:1 (Typ.) (TM)
View Direction			Symmetry		Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	10/10 (Typ.)(Tr/Td) ms	10/10 (Typ.)(Tr/Td) ms	10/10 (Typ.)(Tr/Td)	10/10 (Typ.)(Tr/Td)	10/10 (Typ.)(Tr/Td)
Best View on	Symmetry	Symmetry		Symmetry
Work Mode	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M 99% sRGB	16.7M 72% NTSC	16.7M 99% sRGB	16.7M 97% sRGB	16.7M 72% NTSC
Mass	1.20Kgs (Typ.)	1.20Kgs (Typ.)	1.20Kgs (Typ.)	1.75Kgs (Typ.)	1.20Kgs (Typ.)
Used for	Industrial; Medical Imaging	Industrial; Medical Imaging	Industrial; Medical Imaging		Industrial
Touch Screen	Without	Without	Without	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
