AUO G156XW01 V3
- Part No.:
- G156XW01 V3
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 15.6" TN LCM 1366×768 400nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G156XW01 V3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 15.6"
- TNVAIPS:
- TN
- Resolution:
- 1366×768
- CR:
- 1900/1/20 20:01:00
- Viewing Angle:
- 85/85/80/80
- Colors:
- 16.2M
- Outline Size:
- 363.8(W)×215.9(H) ×9.8(D) mm
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- 500:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 6/2 (Typ.)(Tr/Td)
- Best View on:
- -
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.2M 67% NTSC
- Mass:
- 0.94/1.04Kgs (Typ./Max.)
- Used for:
- Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |

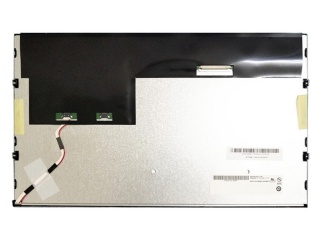

| Part Number | G156XW01 V3 | G156XW01 V312 | G156XW01 V302 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 15.6" | 15.6" | 15.6" |
| TNVAIPS | TN | TN | TN |
| Resolution | 1366×768 | 1366×768 | 1366×768 |
| CR | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 |
| Viewing Angle | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 |
| Colors | 16.2M | 16.2M | 16.2M |
| Outline Size | 363.8(W)×215.9(H) ×9.8(D) mm | 363.8 × 215.9 × 9.8 (H×V×D) | 363.8(W)×215.9(H) ×9.8(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) | 500 cd/m² (Typ.) | 500 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) | 500 : 1 (Typ.) (TM) | 500:1 (Typ.) (TM) |
| View Direction | |||
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 6/2 (Typ.)(Tr/Td) | 6/2 (Typ.)(Tr/Td) ms | 6/2 (Typ.)(Tr/Td) |
| Best View on | - | - | - |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.2M 67% NTSC | 16.2M 65% NTSC | 16.2M 65% NTSC |
| Mass | 0.94/1.04Kgs (Typ./Max.) | 860±40g | 860±40g |
| Used for | Industrial | Industrial | Industrial |
| Touch Screen | Without | Without | Without |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
