AUO G156XTN01.0
- Part No.:
- G156XTN01.0
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 15.6" TN LCM 1366×768 400nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G156XTN01.0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 15.6"
- TNVAIPS:
- TN
- Resolution:
- 1366×768
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 85/85/50/80
- Colors:
- 16.7M
- Outline Size:
- 363.8(W)×215.9(H) ×9.6(D) mm
- Treatment:
- Antiglare, Hard coating (3H), Reflection 4.3% (Typ.)
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- 800:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/50/80 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 10 (Typ.)(Tr+Td)
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 62% NTSC
- Mass:
- 860g (Typ.)
- Used for:
- Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |

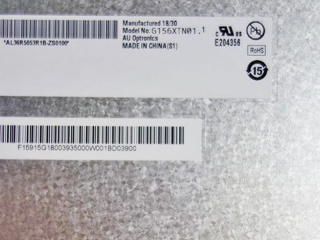

| Part Number | G156XTN01.0 | G156XTN01.2 | G156XTN01.1 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 15.6" | 15.6" | 15.6" |
| TNVAIPS | TN | TN | TN |
| Resolution | 1366×768 | 1366×768 | 1366×768 |
| CR | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 |
| Viewing Angle | 85/85/50/80 | 85/85/70/80 | 85/85/70/80 |
| Colors | 16.7M | 16.7M | 16.7M |
| Outline Size | 363.8(W)×215.9(H) ×9.6(D) mm | 363.8(H)×215.9(V) ×9.57(D) mm | |
| Treatment | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) | Antiglare, Hard coating (3H) | |
| Brightness | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) | - |
| Contrast Ratio | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | 800 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock | ||
| Viewing Angle | 85/85/50/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/70/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/70/80 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 10 (Typ.)(Tr+Td) | 10 (Typ.)(Tr+Td) | 10 (Typ.)(Tr+Td) ms |
| Best View on | 6 o'clock | 6 o'clock | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.7M 62% NTSC | 16.7M 62% NTSC | 16.7M |
| Mass | 860g (Typ.) | 860g (Typ.) | - |
| Used for | Industrial | Industrial | Industrial |
| Touch Screen | Without | Without | Without |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
