AUO G150XVN01.0
- Part No.:
- G150XVN01.0
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 15" VA LCM 1024×768 300nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G150XVN01.0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 15"
- TNVAIPS:
- VA
- Resolution:
- 1024×768
- CR:
- 1900/3/2 12:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 262K/16.2M
- Outline Size:
- 326.5(W)×253.5(H) ×10.1(D) mm
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 300 cd/m² (Typ.)
- Contrast Ratio:
- 1500:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10)
- Response Time:
- 20/15 (Typ.)(Tr/Td)
- Best View on:
- Symmetry
- Work Mode:
- MVA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.2M 72% NTSC
- Mass:
- 950g (Max.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz

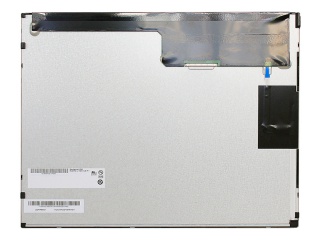

| Image |  |
 |
 |
| Part Number | G150XVN01.0 | G150XVN01.1 | G150XVN01.2 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 15" | 15" | 15" |
| TNVAIPS | VA | VA | VA |
| Resolution | 1024×768 | 1024×768 | 1024×768 |
| CR | 1900/3/2 12:01:00 | 1900/3/2 12:01:00 | 1900/3/2 12:01:00 |
| Viewing Angle | 89/89/89/89 | 85/85/85/85 | 88/88/88/88 |
| Colors | 262K/16.2M | 262K/16.2M | 262K/16.2M |
| Outline Size | 326.5(W)×253.5(H) ×10.1(D) mm | 326.5(W)×253.5(H) mm | 326.5(W)×253.5(H) ×10(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | |
| Brightness | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) | 400 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) | 1500:1 (Typ.) (TM) | |
| View Direction | |||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 20/15 (Typ.)(Tr/Td) | 20/15 (Typ.)(Tr/Td) | |
| Best View on | Symmetry | Symmetry | Symmetry |
| Work Mode | MVA, Normally Black, Transmissive | MVA, Normally Black, Transmissive | |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 262K/16.2M 72% NTSC | 262K/16.2M 72% NTSC | 262K/16.2M 72% NTSC |
| Mass | 950g (Max.) | 910g (Typ.) | TBD |
| Used for | Industrial; Healthcare | ||
| Touch Screen | Without | Without | |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
