AUO G150XTN06.8

Name: G150XTN06.8
Brand: AUO
SKU: G150XTN06.8
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G150XTN06.8

Manufacturer:: AUO

Category:: TFT-LCD Panel

Package:

Description:: AUO 15" TN LCM 1024×768 450nits WLED LVDS 20pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

G150XTN06.8 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: AUO

Panel Size:: 15"

TNVAIPS:: TN

Resolution:: 1024×768

CR:: 1900/2/2 8:01:00

Viewing Angle:: 80/80/70/80

Colors:: 262K/16.2M

Outline Size:: 326.5(W)×253.5(H)×10(D) mm

Treatment:: Antiglare

Brightness:: 450 cd/m² (Typ.)

Contrast Ratio:: 800:1 (Typ.) (TM)

View Direction:: -

Viewing Angle:: 80/80/70/80 (Typ.)(CR≥10)

Response Time:: 5.7/2.3 (Typ.)(Tr/Td)

Best View on:

Work Mode:: TN, Normally White, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 262K/16.2M 60% NTSC

Mass:: 1.00Kgs (Max.)

Used for:

Touch Screen:: Without

Refresh Rate:: 60Hz

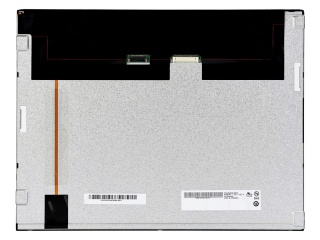

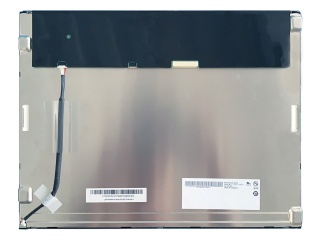

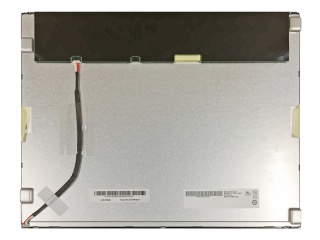

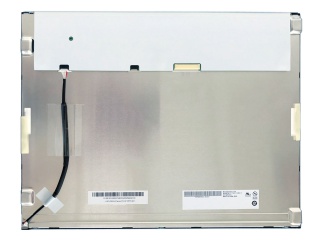

Part Number	G150XTN06.8	G150XTN06.0	G150XTN06.A	G150XTN06.2	G150XTN06.4
Manufacturer	AUO	AUO	AUO	AUO	AUO
Panel Size	15"	15"	15"	15"	15"
TNVAIPS	TN	TN	TN	TN	TN
Resolution	1024×768	1024×768	1024×768	1024×768	1024×768
CR	1900/2/2 8:01:00	1900/2/2 8:01:00	1900/2/2 8:01:00	1900/1/29 4:01:00	1900/2/2 8:01:00
Viewing Angle	80/80/70/80	80/80/70/80	80/80/70/80	80/80/60/80	80/80/70/80
Colors	262K/16.2M	262K/16.2M	262K/16.2M	262K/16.2M	262K/16.2M
Outline Size	326.5(W)×253.5(H)×10(D) mm	326.5(W)×253.5(H)×12.5(D) mm	326.5(W)×253.5(H)×10(D)	326.5×253.5×12 (H×V×D)	326.5×253.5×12 (H×V×D)
Treatment	Antiglare	Antiglare, Hard coating (3H)	Hard coating (3H), Antireflection	Antiglare	Antiglare, Hard coating (3H)
Brightness	450 cd/m² (Typ.)	450 cd/m² (Typ.)	1800 (Typ.)(cd/m²)	300 cd/m² (Typ.)	400 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)	800:1 (Typ.) (TM)	800 : 1 (Typ.) (TM)	700 : 1 (Typ.) (TM)	800 : 1 (Typ.) (TM)
View Direction	-	-
Viewing Angle	80/80/70/80 (Typ.)(CR≥10)	80/80/70/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	80/80/70/80 (Typ.)(CR≥10)	80/80/60/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	80/80/70/80 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	5.7/2.3 (Typ.)(Tr/Td)	5.7/2.3 (Typ.)(Tr/Td)	5.7/2.3 (Typ.)(Tr/Td) ms	5.7/2.3 (Typ.)(Tr/Td) ms	5.7/2.3 (Typ.)(Tr/Td) ms
Best View on			-	-	-
Work Mode	TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K/16.2M 60% NTSC	262K/16.2M 60% NTSC	262K/16.2M 60% NTSC	262K/16.2M 63% NTSC	262K/16.2M 63% NTSC
Mass	1.00Kgs (Max.)	1.00Kgs (Max.)	1.00Kgs (Max.)	1.25Kgs (Typ.)	1.00Kgs (Max.)
Used for		Industrial		Industrial	Industrial
Touch Screen	Without	Without	Without	Without	Without
Refresh Rate	60Hz	60Hz	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
