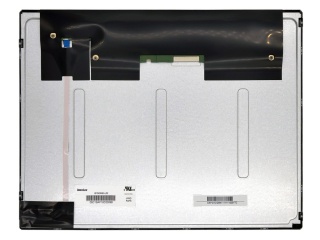

Innolux G150XNE-L03

Name: G150XNE-L03
Brand: Innolux
SKU: G150XNE-L03
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G150XNE-L03

Manufacturer:: Innolux

Category:: TFT-LCD Panel

Package:

Description:: Innolux 15" VA LCM 1024×768 300nits WLED LVDS 20pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

G150XNE-L03 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Innolux

Panel Size:: 15"

TNVAIPS:: VA

Resolution:: 1024×768

CR:: 1900/3/23 8:01:00

Viewing Angle:: 88/88/88/88

Colors:: 262K/16.7M

Outline Size:: 326.5(W)×253.5(H) ×9.6(D) mm

Treatment:: Antiglare, Hard coating (3H)

Brightness:: 300 cd/m² (Typ.)

Contrast Ratio:: 2000:1 (Typ.) (TM)

View Direction:

Viewing Angle:: 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 16/7 (Typ.)(Tr/Td)

Best View on:: Symmetry

Work Mode:: NPVA, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 262K/16.7M 72% NTSC

Mass:: 0.96/1.00Kgs (Typ./Max.)

Used for:: Industrial; Gaming

Touch Screen:: Without

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

Part Number	G150XNE-L03	G150XNE-L01	G150XNE-L02	G150XNE-E01
Manufacturer	Innolux	Innolux	Innolux	Innolux
Panel Size	15"	15"	15"	15"
TNVAIPS	VA	VA	VA	VA
Resolution	1024×768	1024×768	1024×768	1024×768
CR	1900/3/23 8:01:00	1900/4/13 4:01:00	1900/4/13 4:01:00	1900/4/13 4:01:00
Viewing Angle	88/88/88/88	88/88/88/88	88/88/88/88	88/88/88/88
Colors	262K/16.7M	262K/16.7M	262K/16.2M	262K/16.7M
Outline Size	326.5(W)×253.5(H) ×9.6(D) mm	326.5(W)×253.5(H) ×9.6(D) mm	326.5(W)×253.5(H)×9.6(D) mm
Treatment	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)
Brightness	300 cd/m² (Typ.)	500 cd/m² (Typ.)	350 cd/m² (Typ.)	400 cd/m² (Typ.)
Contrast Ratio	2000:1 (Typ.) (TM)	2500:1 (Typ.) (TM)
View Direction				Symmetry
Viewing Angle	88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)	88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)	88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)	88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	16/7 (Typ.)(Tr/Td)	13/5 (Typ.)(Tr/Td)
Best View on	Symmetry	Symmetry	Symmetry
Work Mode	NPVA, Normally Black, Transmissive	NPVA, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K/16.7M 72% NTSC	262K/16.7M 72% NTSC	262K/16.2M 72% NTSC	262K/16.7M 72% NTSC
Mass	0.96/1.00Kgs (Typ./Max.)	0.97/1.00Kgs (Typ./Max.)	0.97/1.00Kgs (Typ./Max.)	-
Used for	Industrial; Gaming	Industrial; Automotive Display
Touch Screen	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
