AUO G150XAN01.2
- Part No.:
- G150XAN01.2
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 15" IPS LCM 1024×768 500nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G150XAN01.2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 15"
- TNVAIPS:
- IPS
- Resolution:
- 1024×768
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.2M
- Outline Size:
- 326.5(H)×253.5(V) ×6.8(D) mm
- Treatment:
- Brightness:
- 500 cd/m² (Typ.)
- Contrast Ratio:
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- Work Mode:
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.2M 60% NTSC
- Mass:
- 660g (Max.)
- Used for:
- Touch Screen:
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |

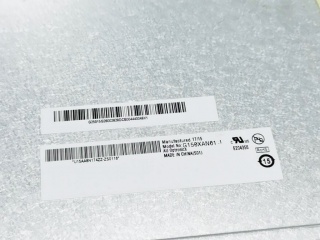

| Part Number | G150XAN01.0 | G150XAN01.2 | G150XAN01.1 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 15" | 15" | 15" |
| TNVAIPS | IPS | IPS | IPS |
| Resolution | 1024×768 | 1024×768 | 1024×768 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.2M | 16.2M | 16.2M |
| Outline Size | 326.5(W)×253.5(H) ×9(D) mm | 326.5(H)×253.5(V) ×6.8(D) mm | 326.5(W)×253.5(H) ×9(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | |
| Brightness | 400 cd/m² (Typ.) | 500 cd/m² (Typ.) | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | |
| View Direction | Symmetry | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 25 (Typ.)(Tr+Td) | 25 (Typ.)(Tr+Td) | |
| Best View on | Symmetry | Symmetry | |
| Work Mode | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.2M 60% NTSC | 16.2M 60% NTSC | 16.2M 60% NTSC |
| Mass | 920g (Max.) | 660g (Max.) | 920g (Max.) |
| Used for | Industrial; Healthcare | Industrial | |
| Touch Screen | Without | Without | |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
