AUO G121STN02.0
- Part No.:
- G121STN02.0
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 12.1" TN LCM 800×600 500nits WLED LVDS 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G121STN02.0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 12.1"
- TNVAIPS:
- TN
- Resolution:
- 800×600
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 80/80/65/75
- Colors:
- 262K/16.7M
- Outline Size:
- 260.5(W)×203(H) ×9(D) mm
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 500 cd/m² (Typ.)
- Contrast Ratio:
- 800:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 80/80/65/75 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 25/10 (Typ.)(Tr/Td)
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.7M 53% NTSC
- Mass:
- 600g (Max.)
- Used for:
- Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |

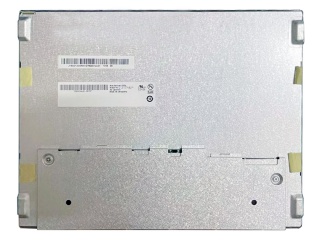

| Part Number | G121STN02.0 | G121STN02.1 |
| Manufacturer | AUO | AUO |
| Panel Size | 12.1" | 12.1" |
| TNVAIPS | TN | TN |
| Resolution | 800×600 | 800×600 |
| CR | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 |
| Viewing Angle | 80/80/65/75 | 80/80/65/75 |
| Colors | 262K/16.7M | 262K/16.7M |
| Outline Size | 260.5(W)×203(H) ×9(D) mm | 261.65(H)×203(V) ×9(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) | 1500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) |
| View Direction | 6 o'clock | |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/65/75 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 25/10 (Typ.)(Tr/Td) | 25/10 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 262K/16.7M 53% NTSC | 262K/16.7M 53% NTSC |
| Mass | 600g (Max.) | 600g (Max.) |
| Used for | Industrial | Industrial |
| Touch Screen | Without | Without |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
