AUO G121SN01 V4
- Part No.:
- G121SN01 V4
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 12.1" TN LCM 800×600 450nits WLED LVDS 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G121SN01 V4 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 12.1"
- TNVAIPS:
- TN
- Resolution:
- 800×600
- CR:
- 1900/1/29 4:01:00
- Viewing Angle:
- 80/80/65/75
- Colors:
- 262K/16.2M
- Outline Size:
- 279(W)×209(H) ×9.5(D) mm
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 450 cd/m² (Typ.)
- Contrast Ratio:
- 700:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 80/80/65/75 (Typ.)(CR≥10)
- Response Time:
- 25/10 (Typ.)(Tr/Td)
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.2M 55% NTSC
- Mass:
- 580g (Max.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |

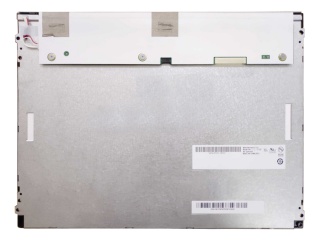

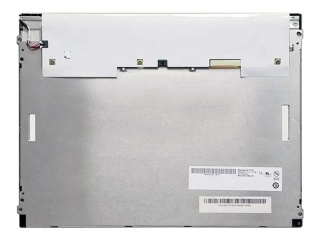

| Part Number | G121SN01 V4 | G121SN01 V403 | G121SN01 V402 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 12.1" | 12.1" | 12.1" |
| TNVAIPS | TN | TN | TN |
| Resolution | 800×600 | 800×600 | 800×600 |
| CR | 1900/1/29 4:01:00 | 1900/1/29 4:01:00 | 1900/1/29 4:01:00 |
| Viewing Angle | 80/80/65/75 | 80/80/65/75 | 80/80/65/75 |
| Colors | 262K/16.2M | 262K/16.2M | 262K/16.2M |
| Outline Size | 279(W)×209(H) ×9.5(D) mm | 279(W)×209(H)×9.5(D) mm | 279(H)×209(V) ×9.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) | 500 cd/m² (Typ.) | 450 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) | 700:1 (Typ.) (TM) | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock | 6 o'clock | |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | 80/80/65/75 (Typ.)(CR≥10) | 80/80/65/75 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 25/10 (Typ.)(Tr/Td) | 25/10 (Typ.)(Tr/Td) | 25/10 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock | ||
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 262K/16.2M 55% NTSC | 262K/16.2M 55% NTSC | 262K/16.2M 55% NTSC |
| Mass | 580g (Max.) | 750g (Max.) | 580g (Max.) |
| Used for | Industrial | ||
| Touch Screen | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
