Innolux G121S1-L02
- Part No.:
- G121S1-L02
- Manufacturer:
- Innolux
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Innolux 12.1" VA LCM 800×600 600nits WLED LVDS 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G121S1-L02 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Innolux
- Panel Size:
- 12.1"
- TNVAIPS:
- VA
- Resolution:
- 800×600
- CR:
- 1900/3/2 12:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 262K/16.2M
- Outline Size:
- 260.5 × 204 × 8.9 (H×V×D)
- Treatment:
- Antiglare (Haze 22%), Hard coating (3H)
- Brightness:
- 600 cd/m² (Typ.)
- Contrast Ratio:
- 1500 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 13/12 (Typ.)(Tr/Td) ms
- Best View on:
- Symmetry
- Work Mode:
- Super MVA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.2M 50% NTSC
- Mass:
- 520/550g (Typ./Max.)
- Used for:
- Industrial; Automotive Display
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |

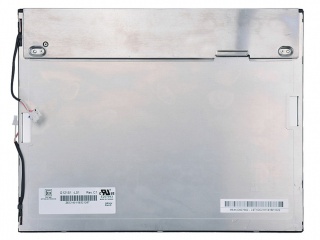

| Part Number | G121S1-L02 | G121S1-L01 |
| Manufacturer | Innolux | Innolux |
| Panel Size | 12.1" | 12.1" |
| TNVAIPS | VA | VA |
| Resolution | 800×600 | 800×600 |
| CR | 1900/3/2 12:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 |
| Colors | 262K/16.2M | 262K |
| Outline Size | 260.5 × 204 × 8.9 (H×V×D) | 260.5(W)×204(H) ×12.7(D) mm |
| Treatment | Antiglare (Haze 22%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 600 cd/m² (Typ.) | 450 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 13/12 (Typ.)(Tr/Td) ms | 13/12 (Typ.)(Tr/Td) |
| Best View on | Symmetry | Symmetry |
| Work Mode | Super MVA, Normally Black, Transmissive | Super MVA, Normally Black, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 262K/16.2M 50% NTSC | 262K 53% NTSC |
| Mass | 520/550g (Typ./Max.) | 660g (Max.) |
| Used for | Industrial; Automotive Display | Industrial; Automotive Display |
| Touch Screen | Without | Without |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
