Innolux G104XCE-L01
- Part No.:
- G104XCE-L01
- Manufacturer:
- Innolux
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Innolux 10.4" IPS LCM 1024×768 500nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G104XCE-L01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Innolux
- Panel Size:
- 10.4"
- TNVAIPS:
- IPS
- Resolution:
- 1024×768
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 88/88/88/88
- Colors:
- 262K/16.2M
- Outline Size:
- 225.5(W)×176.3(H) ×9.2(D) mm
- Treatment:
- Antiglare
- Brightness:
- 500 cd/m² (Typ.)
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 88/88/88/88 (Typ.)(CR≥10)
- Response Time:
- 13/12 (Typ.)(Tr/Td)
- Best View on:
- Symmetry
- Work Mode:
- AAS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.2M 72% NTSC
- Mass:
- 320/335g (Typ./Max.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |

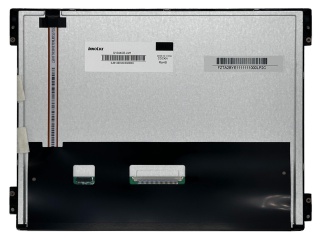

| Part Number | G104XCE-L01 | G104XCE-LH1 | G104XCE-LM1 |
| Manufacturer | Innolux | Innolux | Innolux |
| Panel Size | 10.4" | 10.4" | 10.4" |
| TNVAIPS | IPS | IPS | IPS |
| Resolution | 1024×768 | 1024×768 | 1024×768 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 88/88/88/88 | 88/88/88/88 | 89/89/89/89 |
| Colors | 262K/16.2M | 262K/16.2M | 262K/16.7M |
| Outline Size | 225.5(W)×176.3(H) ×9.2(D) mm | 225.5(W)×176.3(H) ×9.2(D) mm | 238.6(W)×175.8(H)×7.97(D) mm |
| Treatment | Antiglare | Antiglare | Antiglare |
| Brightness | 500 cd/m² (Typ.) | 1000 cd/m² (Typ.) | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | ||
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 13/12 (Typ.)(Tr/Td) | 13/12 (Typ.)(Tr/Td) | 13/12 (Typ.)(Tr/Td) |
| Best View on | Symmetry | Symmetry | |
| Work Mode | AAS, Normally Black, Transmissive | AAS, Normally Black, Transmissive | AAS, Normally Black, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 262K/16.2M 72% NTSC | 262K/16.2M 72% NTSC | 262K/16.7M 72% NTSC |
| Mass | 320/335g (Typ./Max.) | 320/335g (Typ./Max.) | 318/334g (Typ./Max.) |
| Used for | Industrial; Outdoor High Brightness | Industrial | |
| Touch Screen | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
