Innolux G104X1-L03

Name: G104X1-L03
Brand: Innolux
SKU: G104X1-L03
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G104X1-L03

Manufacturer:: Innolux

Category:: TFT-LCD Panel

Package:

Description:: Innolux 10.4" VA LCM 1024×768 350nits WLED LVDS 30pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

G104X1-L03 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Innolux

Panel Size:: 10.4"

TNVAIPS:: VA

Resolution:: 1024×768

CR:: 1900/2/10 16:01:00

Viewing Angle:: 88/88/88/88

Colors:: 262K/16.2M

Outline Size:: 238.6(W)×175.8(H) ×7.97(D) mm

Treatment:: Antiglare

Brightness:: 350 cd/m² (Typ.)

Contrast Ratio:: 1000:1 (Typ.) (TM)

View Direction:

Viewing Angle:: 88/88/88/88 (Typ.)(CR≥10)

Response Time:: 14/11 (Typ.)(Tr/Td)

Best View on:: Symmetry

Work Mode:: Super MVA, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 262K/16.2M 53% NTSC

Mass:: 280g (Typ.)

Used for:

Touch Screen:: Without

Refresh Rate:: 60Hz

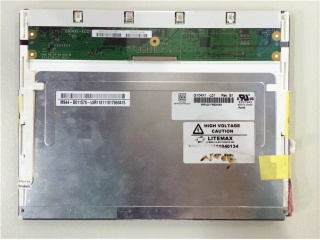

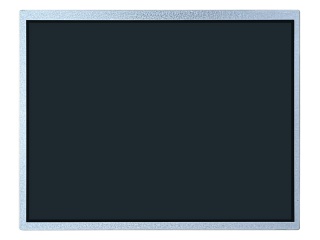

Part Number	G104X1-L03	G104X1-L04	G104X1-L01	G104X1-L02
Manufacturer	Innolux	Innolux	Innolux	Innolux
Panel Size	10.4"	10.4"	10.4"	10.4"
TNVAIPS	VA	VA	VA	VA
Resolution	1024×768	1024×768	1024×768	1024×768
CR	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/19 0:01:00	1900/2/19 0:01:00
Viewing Angle	88/88/88/88	88/88/88/88	88/88/88/88	88/88/88/88
Colors	262K/16.2M	262K/16.2M	16.2M	16.2M
Outline Size	238.6(W)×175.8(H) ×7.97(D) mm	225.5(W)×176.3(H) ×9.2(D) mm	225.5(H)×176.3(V) ×10.67(D) mm	225.5(H)×176.3(V)×10.67(D) mm
Treatment	Antiglare	Antiglare		Glare (Haze 0%), Hard coating (3H)
Brightness	350 cd/m² (Typ.)	500 cd/m² (Typ.)	400 cd/m² (Typ.)	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)	1000:1 (Typ.) (TM)		1200:1 (Typ.) (TM)
View Direction			Symmetry	Symmetry
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)	88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)	88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	14/11 (Typ.)(Tr/Td)	14/11 (Typ.)(Tr/Td)		14/11 (Typ.)(Tr/Td)
Best View on	Symmetry	Symmetry
Work Mode	Super MVA, Normally Black, Transmissive	Super MVA, Normally Black, Transmissive		Super MVA, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K/16.2M 53% NTSC	262K/16.2M 55% NTSC	16.2M 57% NTSC	16.2M 57% NTSC
Mass	280g (Typ.)	430±50g	480g (Typ.)	480g (Typ.)
Used for		Industrial		Industrial; Gaming
Touch Screen	Without	Without		Without
Refresh Rate	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
