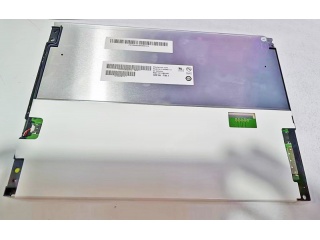

AUO G104VN01 V1
- Part No.:
- G104VN01 V1
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 10.4" TN LCM 640×480 450nits WLED LVDS 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G104VN01 V1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 10.4"
- TNVAIPS:
- TN
- Resolution:
- 640×480
- CR:
- 1900/1/29 4:01:00
- Viewing Angle:
- 80/80/60/80
- Colors:
- 262K/16.2M
- Outline Size:
- 243(W)×176.6(H)×8.5(D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 450 (Typ.)(cd/m²)
- Contrast Ratio:
- 700 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 80/80/60/80 (Typ.)(CR≥10)
- Response Time:
- 20/10 (Typ.)(Tr/Td) ms
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.2M 45% NTSC
- Mass:
- 350g (Typ.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
| Part Number | G104VN01 V1 | G104VN01 V111 |
| Manufacturer | AUO | AUO |
| Panel Size | 10.4" | 10.4" |
| TNVAIPS | TN | TN |
| Resolution | 640×480 | 640×480 |
| CR | 1900/1/29 4:01:00 | 1900/1/29 4:01:00 |
| Viewing Angle | 80/80/60/80 | 80/80/60/80 |
| Colors | 262K/16.2M | 262K/16.7M |
| Outline Size | 243(W)×176.6(H)×8.5(D) | 243(H)×176.6(V)×8.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 450 (Typ.)(cd/m²) | 450 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | 80/80/60/80 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 20/10 (Typ.)(Tr/Td) ms | 20/10 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 262K/16.2M 45% NTSC | 262K/16.7M 45% NTSC |
| Mass | 350g (Typ.) | 355g (Typ.) |
| Used for | Industrial | |
| Touch Screen | Without | Without |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
