Innolux G104V1-T03
- Part No.:
- G104V1-T03
- Manufacturer:
- Innolux
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Innolux 10.4" VA LCM 640×480 500nits WLED TTL 31pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G104V1-T03 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Innolux
- Panel Size:
- 10.4"
- TNVAIPS:
- VA
- Resolution:
- 640×480
- CR:
- 1900/3/2 12:01:00
- Viewing Angle:
- 88/88/88/88
- Colors:
- 262K
- Outline Size:
- 225.5(W)×176.3(H)×9.34(D) mm
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 500 cd/m² (Typ.)
- Contrast Ratio:
- 1500:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 88/88/88/88 (Typ.)(CR≥10)
- Response Time:
- 17/9 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- Super MVA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K 55% NTSC
- Mass:
- 395±50g
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
|

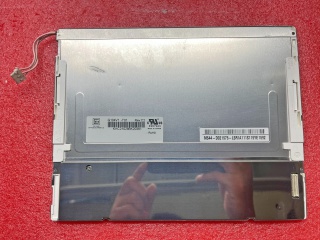

| Part Number | G104V1-T03 | G104V1-T01 | G104V1-L01 | G104V1-L03 |
| Manufacturer | Innolux | Innolux | Innolux | Innolux |
| Panel Size | 10.4" | 10.4" | 10.4" | 10.4" |
| TNVAIPS | VA | VA | ||
| Resolution | 640×480 | 640×480 | 640×480 | 640×480 |
| CR | 1900/3/2 12:01:00 | 1900/3/2 12:01:00 | ||
| Viewing Angle | 88/88/88/88 | 88/88/88/88 | ||
| Colors | 262K | 262K | ||
| Outline Size | 225.5(W)×176.3(H)×9.34(D) mm | 225.5(W)×176.3(H) ×10(D) mm | ||
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | ||
| Brightness | 500 cd/m² (Typ.) | 450 cd/m² (Typ.) | ||
| Contrast Ratio | 1500:1 (Typ.) (TM) | 1500:1 (Typ.) (TM) | ||
| View Direction | Symmetry | |||
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | 88/88/88/88 (Typ.)(CR≥10) | - | - |
| Response Time | 17/9 (Typ.)(Tr/Td) | 14/9 (Typ.)(Tr/Td) | - | - |
| Best View on | Symmetry | - | - | |
| Work Mode | Super MVA, Normally Black, Transmissive | Super MVA, Normally Black, Transmissive | ||
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | 262K 55% NTSC | 262K 55% NTSC | ||
| Mass | 395±50g | 470g (Typ.) | - | - |
| Used for | ||||
| Touch Screen | Without | Without | ||
| Refresh Rate | 60Hz | 60Hz |
