AUO G101UAN01.0
- Part No.:
- G101UAN01.0
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 10.1" IPS LCM 1920×1200 380nits WLED eDP 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G101UAN01.0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 10.1"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1200
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 227.72(W)×147.8(H)×5.35(D) mm
- Treatment:
- Brightness:
- 380 cd/m² (Typ.)
- Contrast Ratio:
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- Symmetry
- Work Mode:
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 52% NTSC
- Mass:
- 140g (Max.)
- Used for:
- Touch Screen:
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |

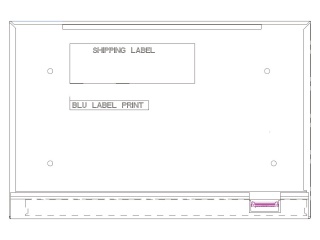

| Part Number | G101UAN01.0 | G101UAN01.1 |
| Manufacturer | AUO | AUO |
| Panel Size | 10.1" | 10.1" |
| TNVAIPS | IPS | IPS |
| Resolution | 1920×1200 | 1920×1200 |
| CR | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M |
| Outline Size | 227.72(W)×147.8(H)×5.35(D) mm | 229.4(W)×150(H)×5.05(D) |
| Treatment | Hard coating | |
| Brightness | 380 cd/m² (Typ.) | 800 (Typ.)(cd/m²) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) | |
| View Direction | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 25 (Typ.)(Tr+Td) ms | |
| Best View on | Symmetry | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive | |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 16.7M 52% NTSC | 16.7M 53% NTSC |
| Mass | 140g (Max.) | 170g (Max.) |
| Used for | ||
| Touch Screen | Without | |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
