AUO G101EVN03.1
- Part No.:
- G101EVN03.1
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 10.1" VA LCM 1280×800 1000nits WLED LVDS 40pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G101EVN03.1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 10.1"
- TNVAIPS:
- VA
- Resolution:
- 1280×800
- CR:
- 1900/2/23 4:01:00
- Viewing Angle:
- 85/85/85/85
- Colors:
- 262K/16.2M
- Outline Size:
- 227.69(H)×148.31(V) ×7.75(D) mm
- Treatment:
- Glare (Haze 0%)
- Brightness:
- 1000 cd/m² (Typ.)
- Contrast Ratio:
- 1300:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 25 (Typ.)(Tr+Td)
- Best View on:
- Work Mode:
- MVA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.2M 45% NTSC
- Mass:
- 350g (Max.)
- Used for:
- Industrial; Outdoor High Brightness
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

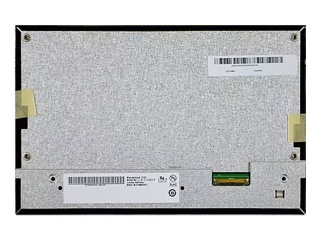

| Image |  |
 |
| Part Number | G101EVN03.1 | G101EVN03.0 |
| Manufacturer | AUO | AUO |
| Panel Size | 10.1" | 10.1" |
| TNVAIPS | VA | VA |
| Resolution | 1280×800 | 1280×800 |
| CR | 1900/2/23 4:01:00 | 1900/2/23 4:01:00 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 |
| Colors | 262K/16.2M | 262K/16.2M |
| Outline Size | 227.69(H)×148.31(V) ×7.75(D) mm | 227.69(H)×148.31(V) ×7.75(D) mm |
| Treatment | Glare (Haze 0%) | Glare (Haze 0%) |
| Brightness | 1000 cd/m² (Typ.) | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) | 1300:1 (Typ.) (TM) |
| View Direction | Symmetry | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 25 (Typ.)(Tr+Td) | 25 (Typ.)(Tr+Td) |
| Best View on | ||
| Work Mode | MVA, Normally Black, Transmissive | MVA, Normally Black, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 262K/16.2M 45% NTSC | 262K/16.2M 45% NTSC |
| Mass | 350g (Max.) | 350g (Max.) |
| Used for | Industrial; Outdoor High Brightness | Industrial; Outdoor High Brightness |
| Touch Screen | Without | Without |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
