AUO G070VW01 V0
- Part No.:
- G070VW01 V0
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 7" TN LCM 800×480 400nits WLED LVDS 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G070VW01 V0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 7"
- TNVAIPS:
- TN
- Resolution:
- 800×480
- CR:
- 1900/1/31 6:01:00
- Viewing Angle:
- 80/80/80/80
- Colors:
- 262K/16.2M
- Outline Size:
- 170(W)×111(H) ×8(D) mm
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- 750:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 20/10 (Typ.)(Tr/Td)
- Best View on:
- -
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.2M 60% NTSC
- Mass:
- 165/175g (Typ./Max.)
- Used for:
- Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |

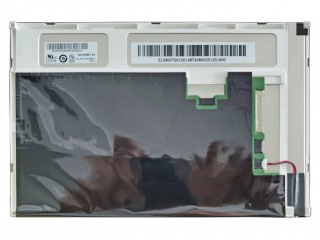

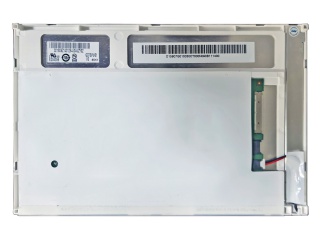

| Part Number | G070VW01 V0 | G070VW01 V012 | G070VW01 V002 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 7" | 7" | 7" |
| TNVAIPS | TN | IPS | TN |
| Resolution | 800×480 | 800×480 | 800×480 |
| CR | 1900/1/31 6:01:00 | 1900/2/10 16:01:00 | 1900/1/31 6:01:00 |
| Viewing Angle | 80/80/80/80 | 89/89/89/89 | 80/80/80/80 |
| Colors | 262K/16.2M | 262K/16.2M | 262K/16.2M |
| Outline Size | 170(W)×111(H) ×8(D) mm | 170(W)×111(H)×8(D) | 170(W)×111(H) ×8(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) | 400 (Typ.)(cd/m²) | 400 cd/m² (Typ.) |
| Contrast Ratio | 750:1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | 750:1 (Typ.) (TM) |
| View Direction | |||
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) | 80/80/80/80 (Typ.)(CR≥10) |
| Response Time | 20/10 (Typ.)(Tr/Td) | 25 (Typ.)(Tr+Td) ms | 20/10 (Typ.)(Tr/Td) |
| Best View on | - | Symmetry | - |
| Work Mode | TN, Normally White, Transmissive | AHVA, Normally Black, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 262K/16.2M 60% NTSC | 262K/16.2M 60% NTSC | 262K/16.2M 60% NTSC |
| Mass | 165/175g (Typ./Max.) | 157g (Max.) | 165±10g |
| Used for | Industrial | ||
| Touch Screen | Without | Without | Without |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz |
