AUO G070VAN01.0
- Part No.:
- G070VAN01.0
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 7" IPS LCM 800×480 480nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G070VAN01.0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 7"
- TNVAIPS:
- IPS
- Resolution:
- 800×480
- CR:
- 1900/2/23 4:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 262K/16.7M
- Outline Size:
- 166.6(H)×107(V) ×10(D) mm
- Treatment:
- Brightness:
- 480 cd/m² (Typ.)
- Contrast Ratio:
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- Work Mode:
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.7M 70% NTSC
- Mass:
- 175±10%g
- Used for:
- Touch Screen:
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

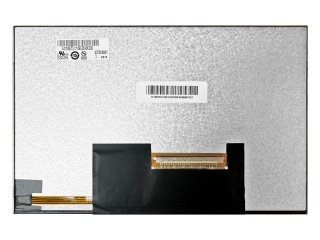

| Image |  |
 |
 |
| Part Number | G070VAN01.0 | G070VAN01.1 | G070VAN01.3 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 7" | 7" | 7" |
| TNVAIPS | IPS | IPS | IPS |
| Resolution | 800×480 | 800×480 | 800×480 |
| CR | 1900/2/23 4:01:00 | 1900/2/23 4:01:00 | 1900/2/23 4:01:00 |
| Viewing Angle | 89/89/89/89 | 85/85/85/85 | 89/89/89/89 |
| Colors | 262K/16.7M | 262K/16.7M | 16.7M |
| Outline Size | 166.6(H)×107(V) ×10(D) mm | 166.6(H)×107(V) ×10(D) mm | |
| Treatment | Antiglare | ||
| Brightness | 480 cd/m² (Typ.) | 200 cd/m² (Typ.) | 520 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) | 1300:1 (Typ.) (TM) | |
| View Direction | Symmetry | Symmetry | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 11/19 (Max.)(Tr/Td) | 11/19 (Max.)(Tr/Td) | |
| Best View on | |||
| Work Mode | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 262K/16.7M 70% NTSC | 262K/16.7M 60% NTSC | 16.7M 70% NTSC |
| Mass | 175±10%g | 160g (Typ.) | - |
| Used for | Industrial | Industrial | |
| Touch Screen | Without | Without | |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
