AUO G057VTN01.1
- Part No.:
- G057VTN01.1
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 5.7" TN LCM 640×480 550nits WLED TTL 33pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G057VTN01.1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 5.7"
- TNVAIPS:
- TN
- Resolution:
- 640×480
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 80/80/70/70
- Colors:
- 262K
- Outline Size:
- 144(W)×104.6(H)×12.8(D) mm
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 550 cd/m² (Typ.)
- Contrast Ratio:
- 800:1 (Typ.) (TM)
- View Direction:
- 12 o'clock
- Viewing Angle:
- 80/80/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 15/10 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K 50% NTSC
- Mass:
- 150/165g (Typ./Max.)
- Used for:
- Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |

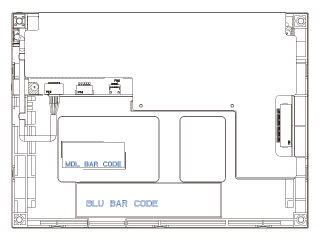

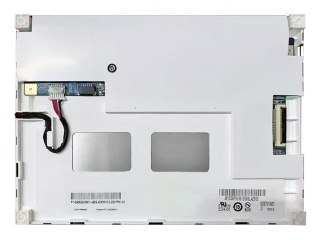

| Part Number | G057VTN01.1 | G057VTN01.110 | G057VTN01.0 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 5.7" | 5.7" | 5.7" |
| TNVAIPS | TN | IPS | TN |
| Resolution | 640×480 | 640×480 | 640×480 |
| CR | 1900/2/2 8:01:00 | 1900/2/10 16:01:00 | 1900/2/2 8:01:00 |
| Viewing Angle | 80/80/70/70 | 89/89/89/89 | 80/80/70/70 |
| Colors | 262K | 262K | 262K |
| Outline Size | 144(W)×104.6(H)×12.8(D) mm | 144(H)×104.6(V)×12.8(D) mm | 144(H)×104.6(V) ×12.8(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 550 cd/m² (Typ.) | 550 cd/m² (Typ.) | 530 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 800:1 (Typ.) (TM) |
| View Direction | 12 o'clock | Symmetry | 12 o'clock |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 15/10 (Typ.)(Tr/Td) | 15/10 (Typ.)(Tr/Td) | 15/10 (Typ.)(Tr/Td) |
| Best View on | |||
| Work Mode | TN, Normally White, Transmissive | AHVA, Normally Black, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 262K 50% NTSC | 262K 50% NTSC | 262K 47% NTSC |
| Mass | 150/165g (Typ./Max.) | 150/165g (Typ./Max.) | 150/165g (Typ./Max.) |
| Used for | Industrial | Industrial | Industrial; Rugged Industry |
| Touch Screen | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
