Triad Magnetics FD5-24
- Part No.:
- FD5-24
- Manufacturer:
- Triad Magnetics
- Category:
- Power Transformers
- Package:
- Datasheet:
-
FD5-24.pdf
- Description:
- PWR XFMR LAMINATED 12VA CHAS MT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FD5-24 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Triad Magnetics
- Series:
- Quick Pack
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- 24V
- Current - Output (Max):
- 500mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Single
- Center Tap:
- Yes
- Power - Max:
- 12VA
- Mounting Type:
- Chassis Mount
- Termination Style:
- Solder, Quick Connect - 0.187" (4.7mm)
- Size / Dimension:
- 71.42mm L x 34.93mm W
- Height - Seated (Max):
- 41.28mm
- Voltage - Isolation:
- 2500VAC
- Weight:
- 0.7 lb (317.51 g)
| Image |  |
 |
 |
 |
 |

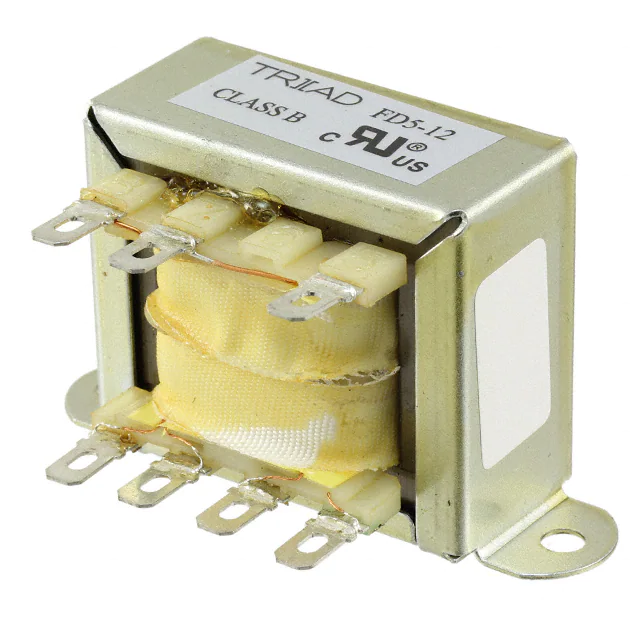

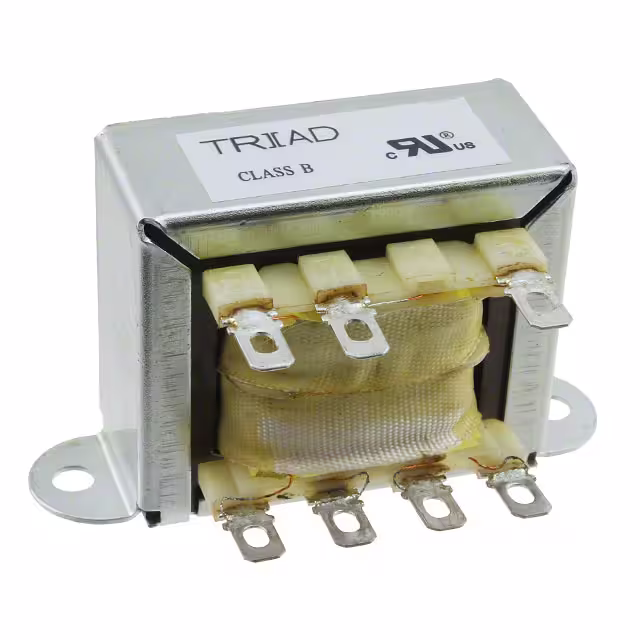

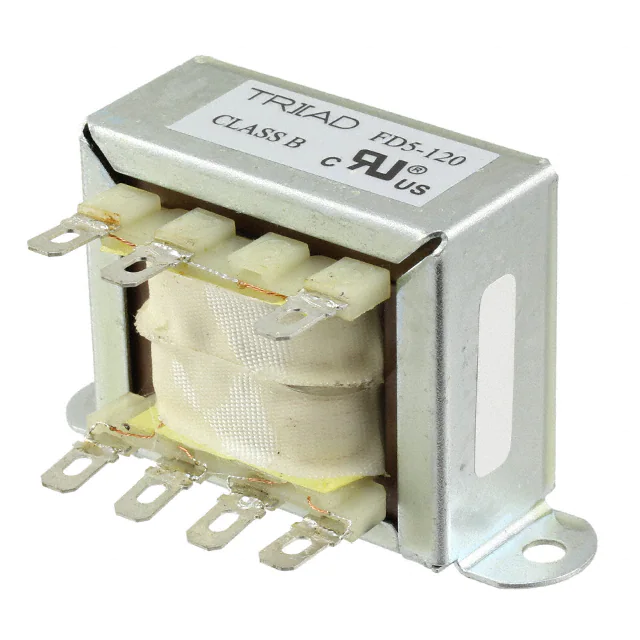

| Part Number | FD5-24 | FD5-12 | FD5-120 | FD5-10 | FD5-16 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Series | Quick Pack | Quick Pack | Quick Pack | Quick Pack | Quick Pack |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | 24V | 12.6V | 120V | 10V | 16V |
| Current - Output (Max) | 500mA | 1A | 100mA | 1.2A | 800mA |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Single | Single | Single | Single | Single |
| Center Tap | Yes | Yes | Yes | Yes | Yes |
| Power - Max | 12VA | 12VA | 12VA | 12VA | 12VA |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) | Solder, Quick Connect - 0.187" (4.7mm) | Solder, Quick Connect - 0.187" (4.7mm) | Solder, Quick Connect - 0.187" (4.7mm) | Solder, Quick Connect - 0.187" (4.7mm) |
| Size / Dimension | 71.42mm L x 34.93mm W | 71.42mm L x 34.93mm W | 71.42mm L x 34.93mm W | 71.42mm L x 34.93mm W | 71.42mm L x 34.93mm W |
| Height - Seated (Max) | 41.28mm | 41.28mm | 41.28mm | 41.28mm | 41.28mm |
| Voltage - Isolation | 2500VAC | 2500VAC | 2500VAC | 2500VAC | 2500VAC |
| Weight | 0.7 lb (317.51 g) | 0.7 lb (317.51 g) | 0.7 lb (317.51 g) | 0.7 lb (317.51 g) | 0.7 lb (317.51 g) |
