BOE ET121S0M-N11
- Part No.:
- ET121S0M-N11
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 12.1" TN LCM 800×600 400nits WLED LVDS 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
ET121S0M-N11 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 12.1"
- TNVAIPS:
- TN
- Resolution:
- 800×600
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 80/80/65/75
- Colors:
- 262K/16.7M
- Outline Size:
- 279(W)×209(H) ×9.3(D) mm
- Treatment:
- Antiglare (Haze 25%)
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- 800:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 80/80/65/75 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 30 (Typ.)(Tr+Td)
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.7M 55% NTSC
- Mass:
- 630g (Max.)
- Used for:
- Industrial; Healthcare
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |

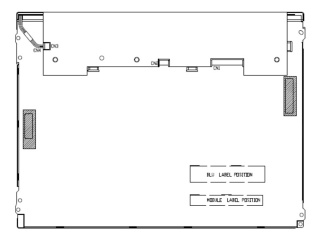

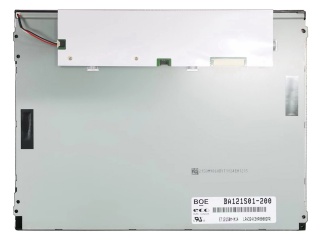

| Part Number | ET121S0M-N11 | ET121S0M-N14 | ET121S0M-N10 |
| Manufacturer | BOE | BOE | BOE |
| Panel Size | 12.1" | 12.1" | 12.1" |
| TNVAIPS | TN | TN | TN |
| Resolution | 800×600 | 800×600 | 800×600 |
| CR | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 |
| Viewing Angle | 80/80/65/75 | 80/80/65/75 | 80/80/65/75 |
| Colors | 262K/16.7M | 262K/16.7M | 262K/16.7M |
| Outline Size | 279(W)×209(H) ×9.3(D) mm | 279(H)×209(V) ×9.6(D) mm | 279(W)×209(H) ×9.3(D) mm |
| Treatment | Antiglare (Haze 25%) | Antiglare (Haze 25%) | |
| Brightness | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) | 450 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | |
| View Direction | 6 o'clock | ||
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/65/75 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/65/75 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | |
| Best View on | 6 o'clock | 6 o'clock | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 262K/16.7M 55% NTSC | 262K/16.7M 55% NTSC | 262K/16.7M 58% NTSC |
| Mass | 630g (Max.) | 630g (Max.) | 500g (Max.) |
| Used for | Industrial; Healthcare | Industrial; Healthcare | |
| Touch Screen | Without | Without | |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
