BOE DV430FHM-NN1

Name: DV430FHM-NN1
Brand: BOE
SKU: DV430FHM-NN1
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: DV430FHM-NN1

Manufacturer:: BOE

Category:: TFT-LCD Panel

Package:

Description:: BOE 43" IPS LCM 1920×1080 400nits WLED LVDS 51pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

DV430FHM-NN1 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: BOE

Panel Size:: 43"

TNVAIPS:: IPS

Resolution:: 1920×1080

CR:: 1900/2/19 0:01:00

Viewing Angle:: 89/89/89/89

Colors:: 16.7M

Outline Size:: 961.7(H)×550.1(V) ×27.7(D) mm

Treatment:

Brightness:: 400 cd/m² (Typ.)

Contrast Ratio:

View Direction:: Symmetry

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:

Work Mode:

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 72% NTSC

Mass:: 8.36Kgs (Typ.)

Used for:

Touch Screen:

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

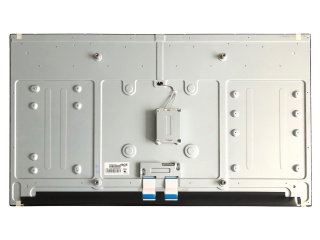

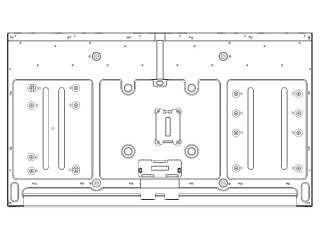

Part Number	DV430FHM-NN1	DV430FHM-NN5	DV430FHM-NN0	DV430FHM-NN3	DV430FHM-NN4
Manufacturer	BOE	BOE	BOE	BOE	BOE
Panel Size	43"	43"	43"	43"	43"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
CR	1900/2/19 0:01:00	1900/2/19 0:01:00	1900/2/19 0:01:00	1900/2/19 0:01:00	1900/2/19 0:01:00
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Colors	16.7M	16.7M	16.7M	16.7M	16.7M
Outline Size	961.7(H)×550.1(V) ×27.7(D) mm	961.7(W)×550.1(H)×32.4(D)	961.7(W)×550.1(H)×27.7(D) mm	961.7(W)×550.1(H) ×32.4(D) mm	961.7(W)×550.1(H) ×32.4(D) mm
Treatment		Antiglare (Haze 25%)		Antiglare (Haze 1%)	Antiglare (Haze 1%)
Brightness	400 cd/m² (Typ.)	700 (Typ.)(cd/m²)	400 cd/m² (Typ.)	550 cd/m² (Typ.)	700 cd/m² (Typ.)
Contrast Ratio		1200 : 1 (Typ.) (TM)		1200:1 (Typ.) (TM)	1200:1 (Typ.) (TM)
View Direction	Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time		8 (Typ.)(G to G) ms		8 (Typ.)(G to G)	8 (Typ.)(G to G)
Best View on		Symmetry	Symmetry	Symmetry	Symmetry
Work Mode		ADS, Normally Black, Transmissive		ADS, Normally Black, Transmissive	ADS, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 72% NTSC
Mass	8.36Kgs (Typ.)	8.36Kgs (Typ.)	TBD	8.36Kgs (Typ.)	8.36Kgs (Typ.)
Used for					Digital Signage; Outdoor High Brightness
Touch Screen		Without		Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
