BOE DV280FBM-NB1
- Part No.:
- DV280FBM-NB1
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 28" Stretched IPS LCM 1920×360 700nits WLED LVDS 51pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DV280FBM-NB1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 28"
- TNVAIPS:
- IPS
- Resolution:
- 1920×360
- CR:
- 1900/2/19 0:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 732 × 165 × 17.3 (H×V×D)
- Treatment:
- -
- Brightness:
- 700 cd/m² (Typ.)
- Contrast Ratio:
- 1200 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 8 (Typ.)(G to G) ms
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- 2.40Kgs (Typ.)
- Used for:
- Digital Signage; Outdoor High Brightness; Stretched Bar LCD
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

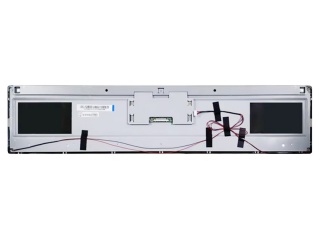

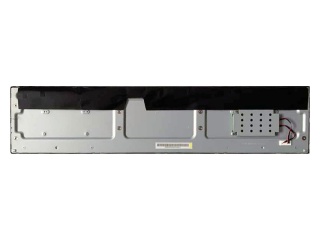

| Image |  |
 |
 |
| Part Number | DV280FBM-NB1 | DV280FBM-NB2 | DV280FBM-NB0 |
| Manufacturer | BOE | BOE | BOE |
| Panel Size | 28" | 28" | 28" |
| TNVAIPS | IPS | IPS | IPS |
| Resolution | 1920×360 | 1920×360 | 1366×256 |
| CR | 1900/2/19 0:01:00 | 1900/2/19 0:01:00 | 1900/2/19 0:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M |
| Outline Size | 732 × 165 × 17.3 (H×V×D) | 732(W)×165(H) ×17.3(D) mm | 731.2(W)×165.4(H) ×21(D) mm |
| Treatment | - | - | Antiglare (Haze 25%) |
| Brightness | 700 cd/m² (Typ.) | 700 cd/m² (Typ.) | 800 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) | 1200:1 (Typ.) (TM) | 1200:1 (Typ.) (TM) |
| View Direction | |||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 8 (Typ.)(G to G) ms | 8 (Typ.)(G to G) | 8 (Typ.)(G to G) |
| Best View on | Symmetry | Symmetry | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 68% NTSC |
| Mass | 2.40Kgs (Typ.) | 2.40Kgs (Typ.) | 2.51Kgs (Typ.) |
| Used for | Digital Signage; Outdoor High Brightness; Stretched Bar LCD | Digital Signage; Outdoor High Brightness; Stretched Bar LCD | Digital Signage; Outdoor High Brightness; Stretched Bar LCD |
| Touch Screen | Without | Without | Without |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
