BOE DV270FHM-R01
- Part No.:
- DV270FHM-R01
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 27" IPS LCM 1920×1080 1500nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DV270FHM-R01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 27"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1080
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 626 × 363.8 × 15 (H×V×D)
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 1500 cd/m² (Typ.)
- Contrast Ratio:
- 1000 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 14 (Typ.)(G to G) ms
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 100% sRGB
- Mass:
- 3.00Kgs (Typ.)
- Used for:
- Industrial; Digital Signage; Outdoor High Brightness
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |

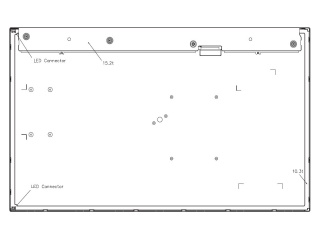

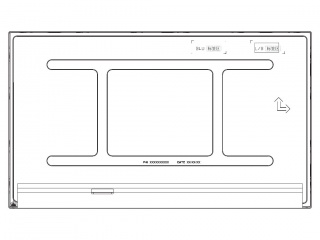

| Part Number | DV270FHM-R01 | DV270FHM-P20 | DV270FHM-N10 | DV270FHM-N11 |
| Manufacturer | BOE | BOE | BOE | BOE |
| Panel Size | 27" | 27" | 27" | 27" |
| TNVAIPS | IPS | IPS | IPS | IPS |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 626 × 363.8 × 15 (H×V×D) | 630.05(H)×368(V)×13.5(D) mm | 630(H)×368.2(V) ×15.7(D) mm | 630(W)×368.2(H)×15.7(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 1500 cd/m² (Typ.) | 300 cd/m² (Typ.) | 500 cd/m² (Typ.) | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | Symmetry | Symmetry | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 14 (Typ.)(G to G) ms | 14 (Typ.)(G to G) | 14 (Typ.)(G to G) | 14 (Typ.)(G to G) |
| Best View on | Symmetry | |||
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | 16.7M 100% sRGB | 16.7M 72% NTSC | 16.7M 100% sRGB | 16.7M 100% sRGB |
| Mass | 3.00Kgs (Typ.) | 3.22/3.50Kgs (Typ./Max.) | 3.10Kgs (Typ.) | 3.10Kgs (Typ.) |
| Used for | Industrial; Digital Signage; Outdoor High Brightness | Digital Signage | Digital Signage | Digital Signage |
| Touch Screen | Without | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
