BOE DV190E0M-N11
- Part No.:
- DV190E0M-N11
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 19" IPS LCM 1280×1024 250nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DV190E0M-N11 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 19"
- TNVAIPS:
- IPS
- Resolution:
- 1280×1024
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 396(W)×324(H) ×10.4(D) mm
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10)
- Response Time:
- 14 (Typ.)(G to G)
- Best View on:
- Symmetry
- Work Mode:
- HADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- 1.52Kgs (Typ.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |

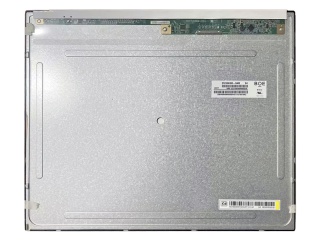

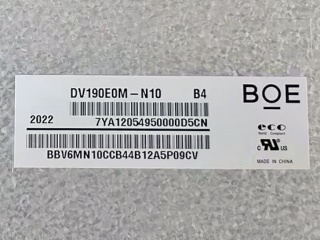

| Part Number | DV190E0M-N11 | DV190E0M-N10 | DV190E0M-NM0 | DV190E0M-N20 |
| Manufacturer | BOE | BOE | BOE | BOE |
| Panel Size | 19" | 19" | 19" | 19" |
| TNVAIPS | IPS | IPS | IPS | IPS |
| Resolution | 1280×1024 | 1280×1024 | 1280×1024 | 1280×1024 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/19 0:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | Grayscale | 16.7M | |
| Outline Size | 396(W)×324(H) ×10.4(D) mm | 396(W)×324(H)×10.4(D) mm | 396(W)×324(H) mm | |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | |
| Brightness | 250 cd/m² (Typ.) | - | 900 cd/m² (Typ.) | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | 1200:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | |||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 14 (Typ.)(G to G) | 14 (Typ.)(G to G) ms | 8/8 (Typ.)(Tr/Td), 14 (Typ.)(G to G) | 14 (Typ.)(G to G) |
| Best View on | Symmetry | Symmetry | Symmetry | |
| Work Mode | HADS, Normally Black, Transmissive | HADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | HADS, Normally Black, Transmissive |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | 16.7M 72% NTSC | Grayscale | 16.7M 72% NTSC | |
| Mass | 1.52Kgs (Typ.) | - | 1.69Kgs (Typ.) | 1.52Kgs (Typ.) |
| Used for | Digital Signage | Medical Imaging | Industrial; Digital Signage | |
| Touch Screen | Without | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz | 60Hz | 75Hz |
