BOE DV185WHM-NM1
- Part No.:
- DV185WHM-NM1
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 18.5" IPS LCM 1366×768 250nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DV185WHM-NM1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 18.5"
- TNVAIPS:
- IPS
- Resolution:
- 1366×768
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 430.4(W)×254.6(H)×11.4(D)
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 250 (Typ.)(cd/m²)
- Contrast Ratio:
- 1000 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10)
- Response Time:
- 14 (Typ.)(G to G) ms
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 99% sRGB
- Mass:
- 1.30Kgs (Typ.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz

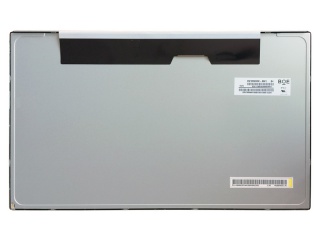

| Image |  |
 |
 |
| Part Number | DV185WHM-NM1 | DV185WHM-NM2 | DV185WHM-NM0 |
| Manufacturer | BOE | BOE | BOE |
| Panel Size | 18.5" | 18.5" | 18.5" |
| TNVAIPS | IPS | IPS | IPS |
| Resolution | 1366×768 | 1366×768 | 1366×768 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M |
| Outline Size | 430.4(W)×254.6(H)×11.4(D) | 430.4 × 254.6 × 11.4 (H×V×D) | 430.4×254.6×11.4 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 (Typ.)(cd/m²) | 500 cd/m² (Typ.) | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) |
| View Direction | |||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 14 (Typ.)(G to G) ms | 14 (Typ.)(G to G) ms | 14 (Typ.)(G to G) ms |
| Best View on | Symmetry | Symmetry | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.7M 99% sRGB | 16.7M 99% sRGB | 16.7M 99% sRGB |
| Mass | 1.30Kgs (Typ.) | 1.30Kgs (Typ.) | 1.27Kgs (Typ.) |
| Used for | Industrial; Digital Signage | Digital Signage | |
| Touch Screen | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
