BOE DV170E0M-N10
- Part No.:
- DV170E0M-N10
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 17" IPS LCM 1280×1024 250nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DV170E0M-N10 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 17"
- TNVAIPS:
- IPS
- Resolution:
- 1280×1024
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 358.5(W)×296.5(H) ×10.8(D) mm
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 20 (Typ.)(Tr+Td)
- Best View on:
- Symmetry
- Work Mode:
- HADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- 1.35Kgs (Typ.)
- Used for:
- Digital Signage
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

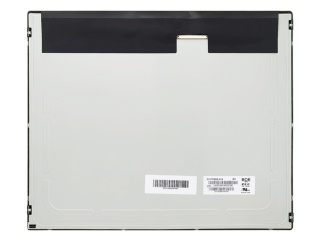

| Image |  |
 |
 |
 |
| Part Number | DV170E0M-N10 | DV170E0M-N30 | DV170E0M-N20 | DV170E0M-N12-KW |
| Manufacturer | BOE | BOE | BOE | BOE |
| Panel Size | 17" | 17" | 17" | 17" |
| TNVAIPS | IPS | IPS | IPS | IPS |
| Resolution | 1280×1024 | 1280×1024 | 1280×1024 | 1280×1024 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 358.5(W)×296.5(H) ×10.8(D) mm | 358.5(W)×296.5(H) ×10.8(D) mm | 358.5(H)×296.5(V) ×10.8(D) mm | 358.5(W)×296.5(H) ×10.8(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | |
| Brightness | 250 cd/m² (Typ.) | 500 cd/m² (Typ.) | 250 cd/m² (Typ.) | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | |
| View Direction | Symmetry | |||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 20 (Typ.)(Tr+Td) | 20 (Typ.)(Tr+Td) | 20 (Typ.)(Tr+Td) | |
| Best View on | Symmetry | Symmetry | Symmetry | |
| Work Mode | HADS, Normally Black, Transmissive | HADS, Normally Black, Transmissive | HADS, Normally Black, Transmissive | |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 72% NTSC |
| Mass | 1.35Kgs (Typ.) | 1.35Kgs (Typ.) | 1.35Kgs (Typ.) | 1.35Kgs (Typ.) |
| Used for | Digital Signage | Digital Signage | ||
| Touch Screen | Without | Without | Without | |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
