Kyocera Display DMF-50840NFL-SFW
- Part No.:
- DMF-50840NFL-SFW
- Manufacturer:
- Kyocera Display
- Category:
- STN Graphic Display
- Package:
- Description:
- Kyocera Display 5.7" 320×240 FSTN-LCD Black/White (Negative) Transflective CCFL Parallel Data 14pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DMF-50840NFL-SFW Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera Display
- Panel Size:
- 5.7"
- Panel Type:
- FSTN-LCD
- Resolution:
- 320×240
- Viewing Area:
- 120.0×90.0
- Outline Size:
- 167.1(W)×109(H) ×11(D) mm
- Treatment:
- -
- Brightness:
- 60 cd/m² (Typ.)
- Contrast Ratio:
- 5:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 40/50/30/40 (Typ.)(CR≥2)
- Response Time:
- 360/340 (Typ.)(Tr/Td)
- Best View on:
- 9 o'clock
- Work Mode:
- FSTN, Black/White (Negative), Transflective
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Monochrome
- Backlight:
- 1 pcs CCFL , 25K hours , Without Driver
- Mass:
- 230g (Max.)
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz
- Driver IC list:
- Signal Type:
- Parallel Data (1ch, 4-bit) , 14 pins FPC
| Image |  |
 |
|
|
|

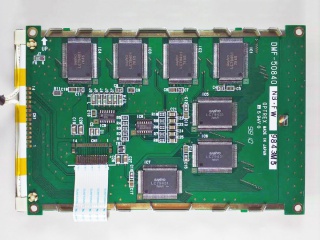

| Part Number | DMF50773NF-FW | DMF-50840NB-FW | DMF5001NY-LY-AIE | DMF-5001NY-LY-ATE-BBN | DMF5010NB-FW-BC |
| Manufacturer | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display | Kyocera Display |
| Panel Size | 5.4" | 5.7" | 4.7" | 4.7" | 5.2" |
| Panel Type | FSTN-LCD | STN-LCD | STN-LCD | STN-LCD | STN-LCD |
| Resolution | 240×128 | 320×240 | 160×128 | 160×128 | 240×64 |
| Viewing Area | 126.0×70.0 | 120.0×90.4 | 101.0×82.0 | 101.0×82.0 | 132.0×39.0 |
| Outline Size | 170(H)×95(V) ×16.7(D) mm | 167.1(W)×109(H) ×11(D) mm | 129(W)×102(H)×18.7(D) mm | 129(W)×102(H) ×19.2(D) mm | 200(H)×66(V) ×23(D) mm |
| Treatment | - | - | - | - | - |
| Brightness | 40 cd/m² (Min.) | 60 cd/m² (Typ.) | 40 cd/m² (Min.) | 40 cd/m² (Min.) | 400 cd/m² (Min.) |
| Contrast Ratio | 6:1 (Typ.) (TM) 6:1 (Typ.) (RF) | 5:1 (Typ.) (TM) | 6:1 (Typ.) (TM) | 6:1 (Typ.) (TM) | 7:1 (Typ.) (TM) |
| View Direction | 6 o'clock | 6 o'clock | 6 o'clock | ||
| Viewing Angle | - | - | - | - | 50/50/35/50 (Typ.)(CR≥2) (Left / Right / Up / Down) |
| Response Time | 200/300 (Typ.)(Tr/Td) | 270/400 (Typ.)(Tr/Td) | 180/240 (Typ.)(Tr/Td) | 180/240 (Typ.)(Tr/Td) | 110/160 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock | 6 o'clock | |||
| Work Mode | STN, Black/White mode, Transflective | STN, Blue mode (Negative), Transmissive | STN, Yellow/Green (Positive), Transmissive | STN, Yellow/Green (Positive), Transmissive | STN, , Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Monochrome | Monochrome | Monochrome | Monochrome | Monochrome |
| Backlight | YG-LED , W/O Driver | 1 pcs CCFL , 25K hours , Without Driver | YG-LED , W/O Driver | YG-LED , Without Driver | CCFL [1 pcs] , 15K hours , W/O Driver |
| Mass | 250g (Max.) | 230g (Max.) | 190g (Max.) | 190g (Max.) | 277g (Max.) |
| Touch Screen | Without | Without | Without | Without | Without |
| Refresh Rate | 70Hz | - | 70Hz | 70Hz | 70Hz |
| Driver IC list | |||||
| Signal Type | 8-bit parallel , 22 pins | Parallel Data (1ch, 4-bit) , 14 pins Connector | 8-bit parallel , 22 pins | 8-bit parallel , 22 pins | 8-bit parallel , 20 pins |
