Transko Electronics, Inc. CS22-F2030EQ10-16.200M-TR
- Part No.:
- CS22-F2030EQ10-16.200M-TR
- Manufacturer:
- Transko Electronics, Inc.
- Category:
- Crystals
- Package:
- 4-SMD, No Lead
- Datasheet:
-
CS22-F2030EQ10-16.200M-TR.pdf
- Description:
- 16.200Mhz crystal, 10pF load, fu
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CS22-F2030EQ10-16.200M-TR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Transko Electronics, Inc.
- Series:
- CS22
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- MHz Crystal
- Frequency:
- 16.2 MHz
- Frequency Stability:
- ±30ppm
- Frequency Tolerance:
- ±20ppm
- Load Capacitance:
- 10pF
- ESR (Equivalent Series Resistance):
- 150 Ohms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -30°C ~ 85°C
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):
- 0.022" (0.55mm)

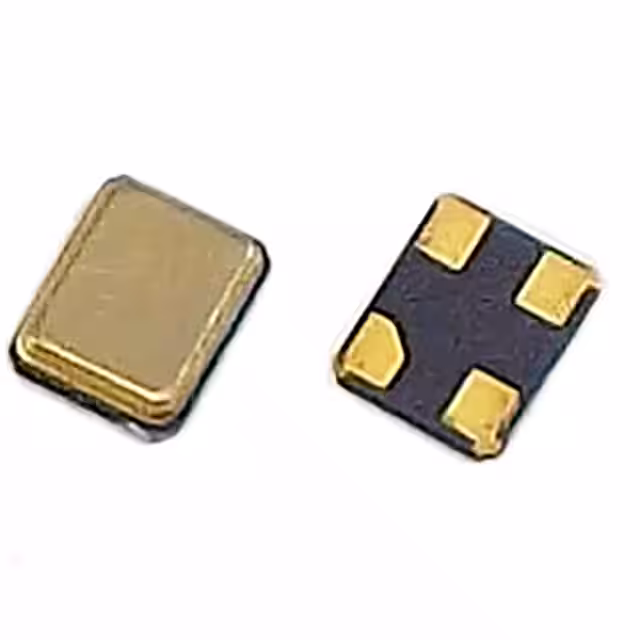

| Image |  |
 |
 |
|
| Part Number | CS22-F1010GK09-30.000M-TR | CS22-F1010GK09-30.000M | CS22-F1025CQ10-12.000M-TR | CS22-F2030EQ10-16.200M-TR |
| Manufacturer | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. |
| Series | CS22 | CS22 | CS22 | CS22 |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Strip | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 30 MHz | 30 MHz | 12 MHz | 16.2 MHz |
| Frequency Stability | ±10ppm | ±10ppm | ±25ppm | ±30ppm |
| Frequency Tolerance | ±10ppm | ±10ppm | ±10ppm | ±20ppm |
| Load Capacitance | 9pF | 9pF | 10pF | 10pF |
| ESR (Equivalent Series Resistance) | 100 Ohms | 100 Ohms | 180 Ohms | 150 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C | -40°C ~ 85°C | -30°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
