BOE BP101WX1-206
- Part No.:
- BP101WX1-206
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 10.1" IPS LCM 1280×800 330nits WLED LVDS 40pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
BP101WX1-206 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 10.1"
- TNVAIPS:
- IPS
- Resolution:
- 1280×800
- CR:
- 1900/1/25 0:01:00
- Viewing Angle:
- 80/80/80/80
- Colors:
- 16.7M
- Outline Size:
- 228.6(H)×149.2(V) ×4.59(D) mm
- Treatment:
- Glare (Haze 0%), Hard coating (3H), Antireflection
- Brightness:
- 330 cd/m² (Typ.)
- Contrast Ratio:
- 600:1 (Min.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 25 (Typ.)(Tr+Td)
- Best View on:
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 50% NTSC
- Mass:
- 150g (Max.)
- Used for:
- Pad & Tablet
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |
 |
 |

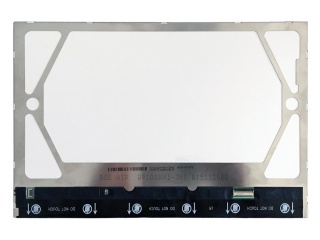

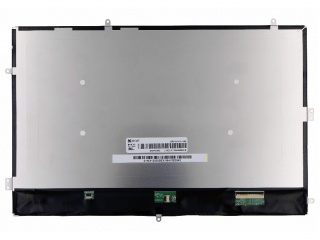

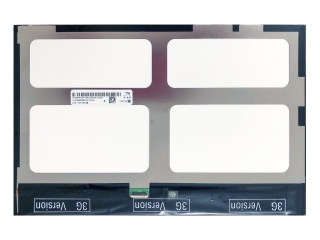

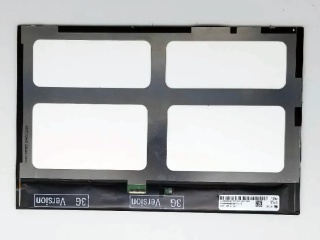

| Part Number | BP101WX1-206 | BP101WX1-300 | BP101WX1-400 | BP101WX1-210 | BP101WX1-209 |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 10.1" | 10.1" | 10.1" | 10.1" | 10.1" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1280×800 | 1280×800 | 1280×800 | 1280×800 | 1280×800 |
| CR | 1900/1/25 0:01:00 | 1900/2/6 12:01:00 | 1900/2/2 8:01:00 | 1900/1/25 0:01:00 | 1900/1/25 0:01:00 |
| Viewing Angle | 80/80/80/80 | 89/89/89/89 | 80/80/80/80 | 80/80/80/80 | 80/80/80/80 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 228.6(H)×149.2(V) ×4.59(D) mm | 228.21(W)×148.86(H)×4.59(D) mm | 229.46(H)×149.15(V) ×4.5(D) mm | 228.3(W)×149.05(H) ×4.4(D) mm | 228.3(W)×149.05(H) ×4.4(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H), Antireflection | Hard coating (3H), Antireflection | Glare (Haze 0%), Hard coating (3H), Antireflection | ||
| Brightness | 330 cd/m² (Typ.) | 450 cd/m² (Typ.) | 350 cd/m² (Typ.) | 330 cd/m² (Typ.) | 330 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Min.) (TM) | 900:1 (Typ.) (TM) | 600:1 (Min.) (TM) | ||
| View Direction | Symmetry | Symmetry | Symmetry | ||
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 25 (Typ.)(Tr+Td) | 25 (Typ.)(Tr+Td) | 25 (Typ.)(Tr+Td) | ||
| Best View on | Symmetry | Symmetry | |||
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ||
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 50% NTSC | 16.7M 53% NTSC | 16.7M 50% NTSC | 16.7M 50% NTSC | 16.7M 50% NTSC |
| Mass | 150g (Max.) | 145g (Max.) | 164.5/167g (Typ./Max.) | 155g (Max.) | 155g (Max.) |
| Used for | Pad & Tablet | Pad & Tablet | |||
| Touch Screen | Without | Without | Without | ||
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
