AUO B140UAN08.5
- Part No.:
- B140UAN08.5
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 14" IPS LCM 1920×1200 400nits WLED eDP 30pins AUO8BBA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
B140UAN08.5 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 14"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1200
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 306.59(H)×205(V) ×3(D) mm
- Treatment:
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- Work Mode:
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 45% NTSC
- Mass:
- Used for:
- Touch Screen:
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |

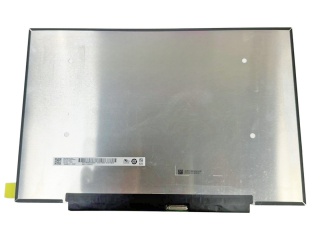

| Part Number | B140UAN08.0 | B140UAN08.5 |
| Manufacturer | AUO | AUO |
| Panel Size | 14" | 14" |
| TNVAIPS | IPS | IPS |
| Resolution | 1920×1200 | 1920×1200 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M |
| Outline Size | 306.59(W)×205(H) ×3(D) mm | 306.59(H)×205(V) ×3(D) mm |
| Treatment | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) | |
| Brightness | 300 cd/m² (Typ.) | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | |
| View Direction | Symmetry | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 20 (Typ.)(Tr+Td) | |
| Best View on | Symmetry | |
| Work Mode | AHVA, Normally Black, Transmissive | |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 16.7M 45% NTSC | 16.7M 45% NTSC |
| Mass | ||
| Used for | ||
| Touch Screen | Without | |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
