Innolux AT102TN03 V.8

Name: AT102TN03 V.8
Brand: Innolux
SKU: AT102TN03 V.8
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: AT102TN03 V.8

Manufacturer:: Innolux

Category:: TFT-LCD Panel

Package:

Description:: Innolux 10.2" TN LCM 800×480 350nits WLED TTL 60pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

AT102TN03 V.8 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Innolux

Panel Size:: 10.2"

TNVAIPS:: TN

Resolution:: 800×480

CR:: 1900/1/12 12:01:00

Viewing Angle:: 65/65/45/65

Colors:: 262K

Outline Size:: 235(H)×145.8(V)×6.4(D) mm

Treatment:: Antiglare

Brightness:: 350 cd/m² (Typ.)

Contrast Ratio:: 300:1 (Typ.) (TM)

View Direction:: 6 o'clock

Viewing Angle:: 65/65/45/65 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 15/20 (Typ.)(Tr/Td)

Best View on:

Work Mode:: TN, Normally White, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 262K 50% NTSC

Mass:: 309g (Typ.)

Used for:: Automotive Display

Touch Screen:: Without

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

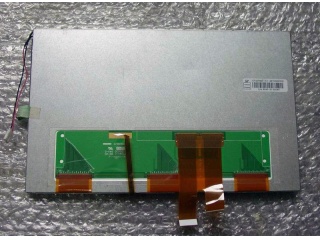

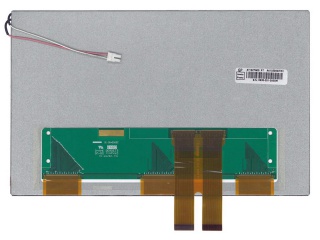

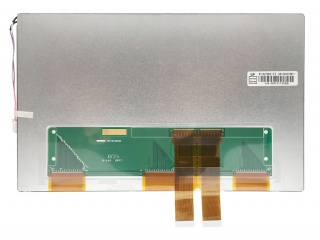

Part Number	AT102TN03 V.8	AT102TN03 V.9	AT102TN03 V.1	AT102TN03 V.3	AT102TN03 V.6
Manufacturer	Innolux	Innolux	Innolux	Innolux	Innolux
Panel Size	10.2"	10.2"	10.2"	10.2"	10.2"
TNVAIPS	TN	TN	TN	TN	TN
Resolution	800×480	800×480	800×480	800×480	800×480
CR	1900/1/12 12:01:00	1900/1/12 12:01:00	1900/1/12 12:01:00	1900/1/12 12:01:00	1900/1/12 12:01:00
Viewing Angle	65/65/45/65	65/65/45/65	65/65/45/65	65/65/45/65	65/65/45/65
Colors	262K	262K	262K	262K	262K
Outline Size	235(H)×145.8(V)×6.4(D) mm	235(W)×145.8(H) ×6.1(D) mm	235(H)×145.8(V) ×6.4(D) mm	235(W)×145.8(H) ×10.5(D) mm	235(W)×145.8(H)×6.4(D) mm
Treatment	Antiglare			Antiglare	Antiglare
Brightness	350 cd/m² (Typ.)	250 cd/m² (Typ.)	250 cd/m² (Typ.)	300 cd/m² (Typ.)	250 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)			300:1 (Typ.) (TM)	300:1 (Typ.) (TM)
View Direction	6 o'clock		6 o'clock		6 o'clock
Viewing Angle	65/65/45/65 (Typ.)(CR≥10) (Left / Right / Up / Down)	65/65/45/65 (Typ.)(CR≥10) (Left / Right / Up / Down)	65/65/45/65 (Typ.)(CR≥10) (Left / Right / Up / Down)	65/65/45/65 (Typ.)(CR≥10) (Left / Right / Up / Down)	65/65/45/65 (Typ.)(CR≥10)
Response Time	15/20 (Typ.)(Tr/Td)			15/20 (Typ.)(Tr/Td)	15/20 (Typ.)(Tr/Td)
Best View on		6 o'clock		6 o'clock
Work Mode	TN, Normally White, Transmissive			TN, Normally White, Transmissive	TN, Normally White, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K 50% NTSC	262K 50% NTSC	262K	262K	262K
Mass	309g (Typ.)	325g (Typ.)	335g (Typ.)	TBD	334g (Typ.)
Used for	Automotive Display			Automotive Display; Digital Photo Frame; Portable DVD Player
Touch Screen	Without			4-wire Resistive Touch	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz
