Innolux AT056TN53 V.1
- Part No.:
- AT056TN53 V.1
- Manufacturer:
- Innolux
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Innolux 5.6" TN LCM 640×480 500nits WLED TTL 40pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
AT056TN53 V.1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Innolux
- Panel Size:
- 5.6"
- TNVAIPS:
- TN
- Resolution:
- 640×480
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 70/70/50/70
- Colors:
- 262K
- Outline Size:
- 126.5(W)×100(H) ×6(D) mm
- Treatment:
- Antiglare
- Brightness:
- 500 cd/m² (Typ.)
- Contrast Ratio:
- 800:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 70/70/50/70 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 10/15 (Typ.)(Tr/Td)
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K 50% NTSC
- Mass:
- 83.1g (Typ.)
- Used for:
- Industrial; Digital Photo Frame; Video Door Phone; VOIP Phone
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz

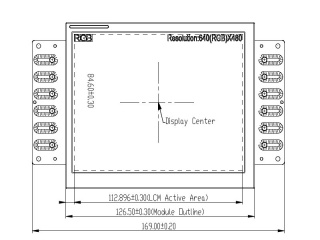

| Image |  |
 |
| Part Number | AT056TN53 V.1 | AT056TN53 V.3 |
| Manufacturer | Innolux | Innolux |
| Panel Size | 5.6" | 5.6" |
| TNVAIPS | TN | TN |
| Resolution | 640×480 | 640×480 |
| CR | 1900/2/2 8:01:00 | 1900/1/20 20:01:00 |
| Viewing Angle | 70/70/50/70 | 70/70/50/70 |
| Colors | 262K | 16.7M |
| Outline Size | 126.5(W)×100(H) ×6(D) mm | 169(W)×103(H) ×11.6(D) mm |
| Treatment | Antiglare | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) | 280 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) | 500:1 (Typ.) (TM) |
| View Direction | ||
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/50/70 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 10/15 (Typ.)(Tr/Td) | 10/15 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 262K 50% NTSC | 16.7M |
| Mass | 83.1g (Typ.) | 192g (Typ.) |
| Used for | Industrial; Digital Photo Frame; Video Door Phone; VOIP Phone | VOIP Phone |
| Touch Screen | Without | 4-wire Resistive Touch |
| Refresh Rate | 60Hz | 60Hz |
