Abracon LLC ABS06L-32.768KHZ
- Part No.:
- ABS06L-32.768KHZ
- Manufacturer:
- Abracon LLC
- Category:
- Crystals
- Package:
- 2-SMD, No Lead
- Datasheet:
-
ABS06L-32.768KHZ.pdf
- Description:
- CRYSTAL 32.7680KHZ 12.5PF SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ABS06L-32.768KHZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- ABS06
- Package/Case:
- 2-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Type:
- kHz Crystal (Tuning Fork)
- Frequency:
- 32.768 kHz
- Frequency Stability:
- -
- Frequency Tolerance:
- ±20ppm
- Load Capacitance:
- 12.5pF
- ESR (Equivalent Series Resistance):
- 100 kOhms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -40°C ~ 85°C
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.079" L x 0.047" W (2.00mm x 1.20mm)
- Height - Seated (Max):
- 0.024" (0.60mm)

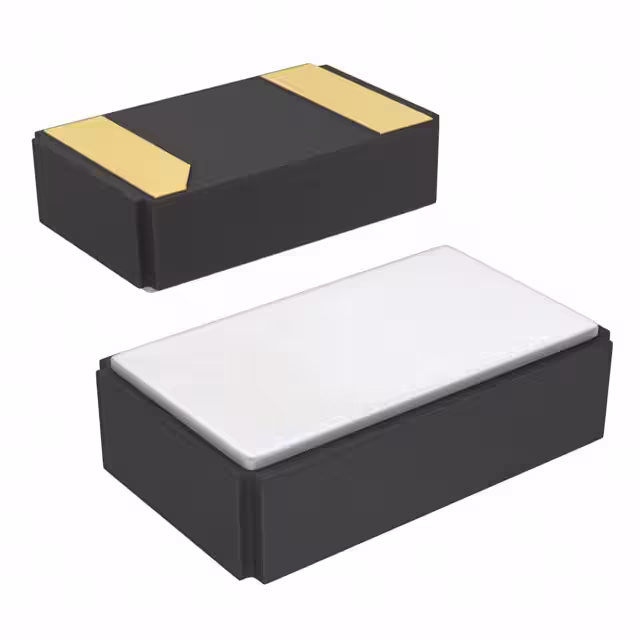

| Image |  |
 |
|
|
| Part Number | ABS06L-32.768KHZ-T | ABS06L-32.768KHZ | ABS06L-32.768KHZ-9 | ABS06L-32.768KHZ-9-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | ABS06L | ABS06 | ABS06 | ABS06L |
| Package/Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz |
| Frequency Stability | - | - | - | - |
| Frequency Tolerance | ±20ppm | ±20ppm | ±20ppm | ±20ppm |
| Load Capacitance | 12.5pF | 12.5pF | 9pF | 9pF |
| ESR (Equivalent Series Resistance) | 100 kOhms | 100 kOhms | 100 kOhms | 100 kOhms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.015" (0.38mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.015" (0.38mm) |
