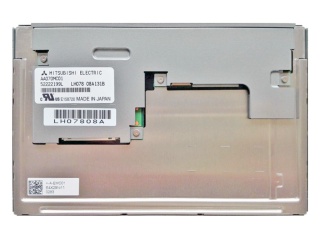

Mitsubishi AA070MC01--G3
- Part No.:
- AA070MC01--G3
- Manufacturer:
- Mitsubishi
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Mitsubishi 7" IPS LCM 800×480 WLED LVDS 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
AA070MC01--G3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Mitsubishi
- Panel Size:
- 7"
- TNVAIPS:
- IPS
- Resolution:
- 800×480
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 88/88/88/88
- Colors:
- 262K/16.7M
- Outline Size:
- Treatment:
- Brightness:
- -
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 12/12 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- SWV, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.7M 50% NTSC
- Mass:
- -
- Used for:
- Industrial; Outdoor High Brightness
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
|
 |
| Part Number | AA070MC01 | AA070MC01-DA1 | AA070MC01ADA11 | AA070MC01--G3 |
| Manufacturer | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
| Panel Size | 7" | 7" | 7" | 7" |
| TNVAIPS | IPS | IPS | IPS | IPS |
| Resolution | 800×480 | 800×480 | 800×480 | 800×480 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 88/88/88/88 | 85/85/85/85 | 85/85/85/85 | 88/88/88/88 |
| Colors | 262K/16.7M | 262K/16.7M | 262K/16.7M | 262K/16.7M |
| Outline Size | 169.8(W)×109.7(H) ×9.4(D) mm | 189.8(W)×129.7(H) mm | 189.8(W)×129.7(H) mm | |
| Treatment | Clear | |||
| Brightness | 1000 cd/m² (Typ.) | 800 cd/m² (Typ.) | 800 cd/m² (Typ.) | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | ||
| View Direction | Symmetry | |||
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 12/12 (Typ.)(Tr/Td) | 12/12 (Typ.)(Tr/Td) | ||
| Best View on | Symmetry | Symmetry | Symmetry | |
| Work Mode | SWV, Normally Black, Transmissive | SWV, Normally Black, Transmissive | ||
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | 262K/16.7M 50% NTSC | 262K/16.7M 50% NTSC | 262K/16.7M 50% NTSC | 262K/16.7M 50% NTSC |
| Mass | 200g (Typ.) | 350g (Typ.) | - | - |
| Used for | Industrial | Industrial; Outdoor High Brightness | ||
| Touch Screen | PCAP, Air Bonding, USB | Without | ||
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
